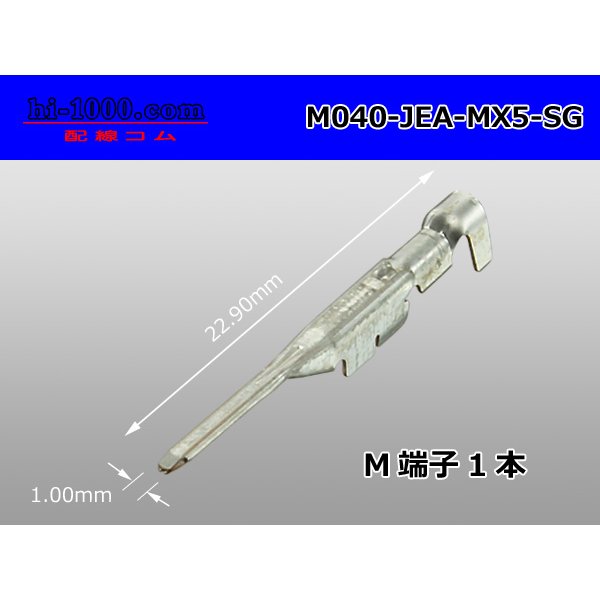

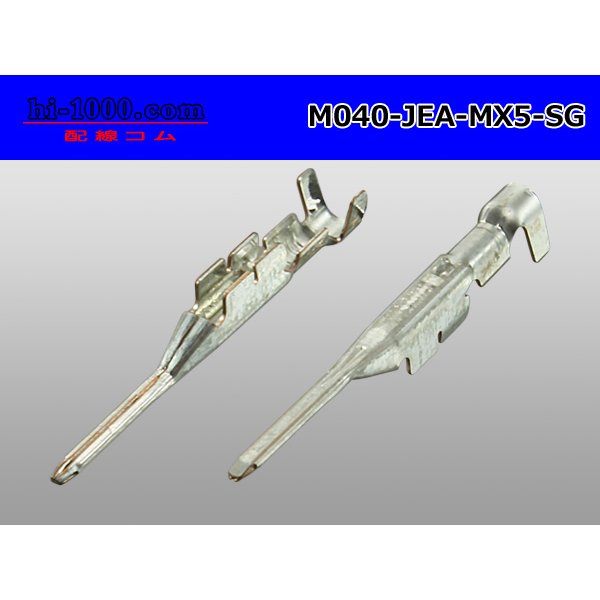

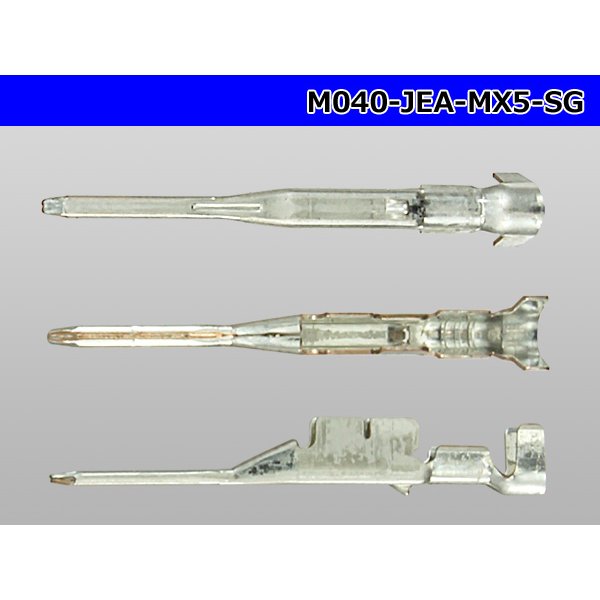

JAE 040 type MX5-A series M terminal/M040-JAE-MX5-SG

Applicable wire size AVS/AVSS/AVX AWG24-20 (0.2-0.5mm2)
Outer diameter of wire coating 1.2-2.2mm

*Be careful of the wire size that can be used
Even if the terminal "electric wire sheath outer diameter" is less than 2.2 mm, it may not be possible to insert it into the connector depending on the finish of the caulking process, so we recommend a wire with a thin sheath.
