A price is a price around 1m.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 600m as 1 reel becomes 600m

Use I can use it in (four of them, two) automotive low-pressure conductive trace.
Characteristic AVS is suitable for lightweighting, 細経化 of the wire harness by the type that thinned an insulator than AV.
JASO D611 conformity
Heat-resistant class 80 degrees Celsius

＊Please note that this product is not flexible.

Product contents
Maker Sumitomo Wiring Systems
Series Escalope low pressure electric wire (escalope electric wire type 1) for the AVS car
Standard size 1.25


Number of the wires/wire diameter (this /mm) 16/0.32
Conductor calculation cross section (mm2) 1.287
Conductor outer diameter (mm) 1.5
Insulator thickness (mm) 0.5
Finish outer diameter (mm) 2.5-2.6
Current tolerance (A) 20

Current tolerance in case of 1.25
Ambient temperature (℃) 20 30 40 50 60 70
Current tolerance (A) 25 23 20 17 14 10

※the heat-resistant class is conductor best allowable temperature when 10,000 hours were used as an indication at accumulation electricity time.
※the current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature.

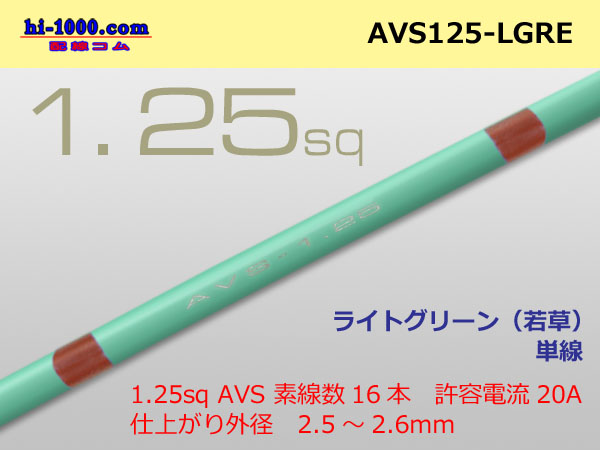

※The current tolerance in the image is notation in case of ambient temperature 40 degrees.
