A price is a price around 1m.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 25m as 1 reel becomes 25m.
Use The fancy goods are used for wiring of various low voltage in the car, and the cotton and hemp fabrics are mainly used for battery.
Characteristic I am superior in oil-resistant, cold-proof, wear resistance to endure the use by car. JIS C3406 conformity

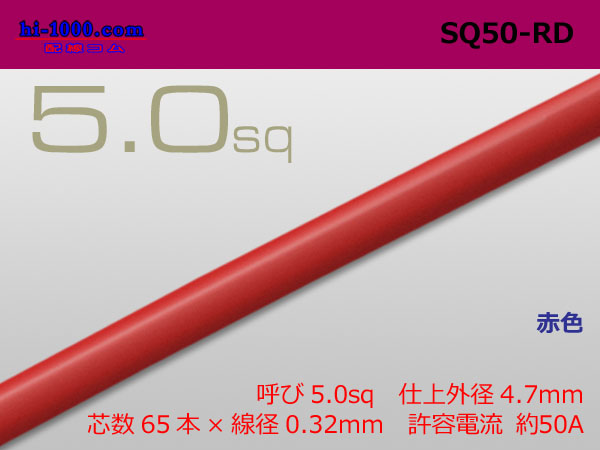

Series Vinyl low pressure electric wire AV for the car
Standard size 5.0
Number of the wires/wire diameter (this /mm) 65/0.32
Official name cross section (mm2) 5.0
Conductor outer diameter (mm) 3.0
Insulator thickness (mm) 0.85
Finish outer diameter (mm) 4.7
Current tolerance in case of 5.0
Ambient temperature (℃) 30 40 50 60 70
Current tolerance (A) 57 51 44 36 25
Heat-resistant class 80 degrees Celsius
※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature.
