"Hi-1000ec.com" handles genuine couplers (connectors), terminals, and automotive wires mainly used in Japanese motorcycle and automobile wiring harnesses. We look forward to your orders.

Item Description

Wire Protection Parts

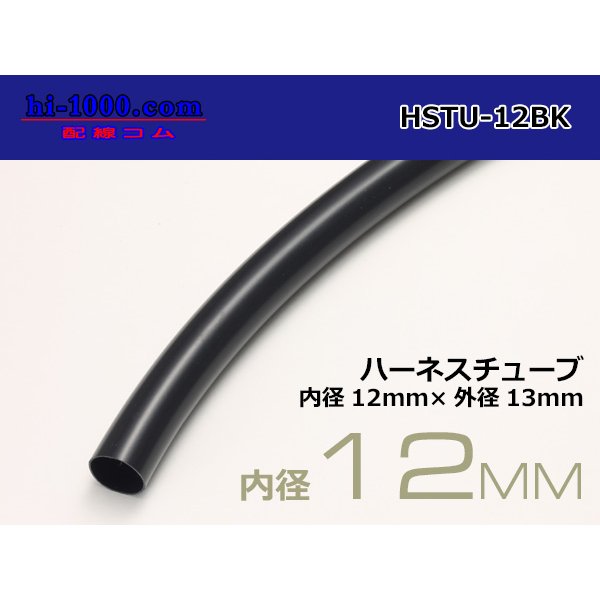

Harness tube [color Black] 12 Φ (12x13) (1m)/HSTU-12BK [HSTU-12BK]

Price: US$3.39

[Stock:172 ]

Weight: 15g

Item Description

■ price is the price per 1m. We will deliver it to your purchase quantity in the "connected state".
■ heat temperature is dropped the glossy 60 ℃ black (semi-gloss) to improve the street of the wire, it is a tube with enhanced workability.
■ have excellent flexibility is ideal for such as harness production.
Item black (semi-gloss)
tensile test tensile strength (MPa) 19.3
elongation (%) 350
100% modulus (MPa) < / td> 10.4
tensile after the heating test tensile strength residual rate (%) 93
growth residual rate (%) 83
heating deformation rate (%) 12
cold resistance (℃) - 35
thermal stability (time) 3.0
& nbsp; oil resistance tensile strength retention of (%) 92
growth residual rate (%) 81
& nbsp; JIS hardness (23 ℃) 80
& nbsp; specific gravity < td align = "center"> 1.37
heating conditions ??? 100 ℃ / 120 hour test method ??? JIS K 6723 compliant
* above are representative values, not guaranteed values. & Nbsp;
