Item Description

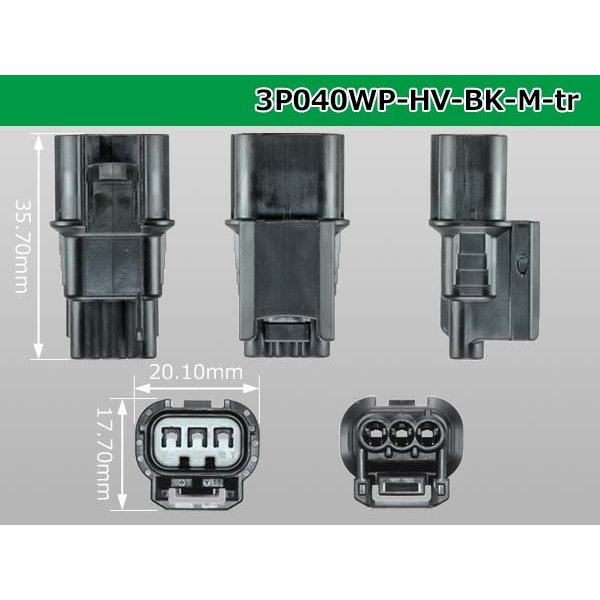

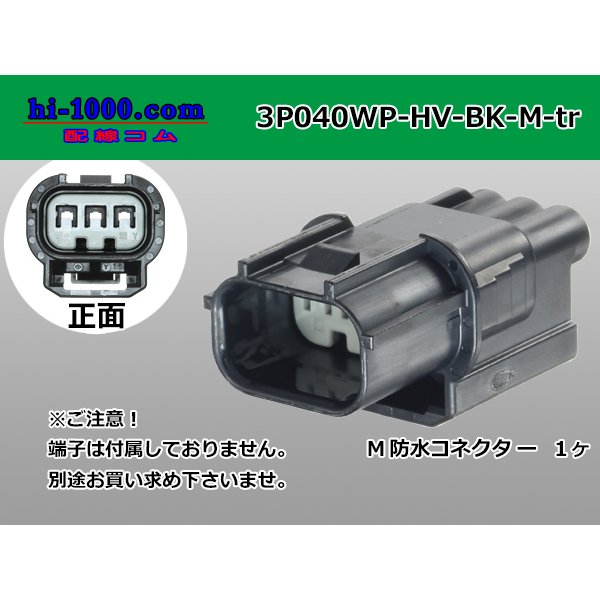

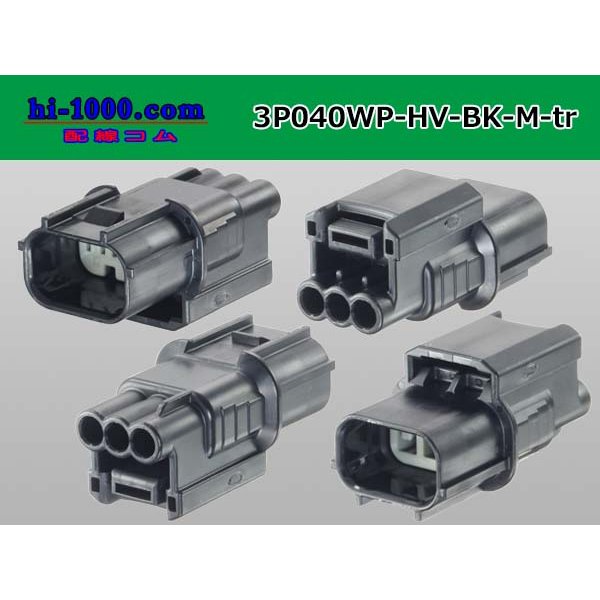

●[sumitomo] 040 type HV/HVG [waterproofing] series 3 pole M side connector, it is (no terminals) /3P040WP-HV-BK-M-tr [3P040WP-HV-BK-M-tr]
Price: US$4.60
[Stock:38 ]
Weight: 15g
- Tweet
Item Description
This product is M side connector.
Please buy the M terminal, the wire seal and dummy plug are separately.
In addition, the F side connector is not included, too.
please buy it separately.

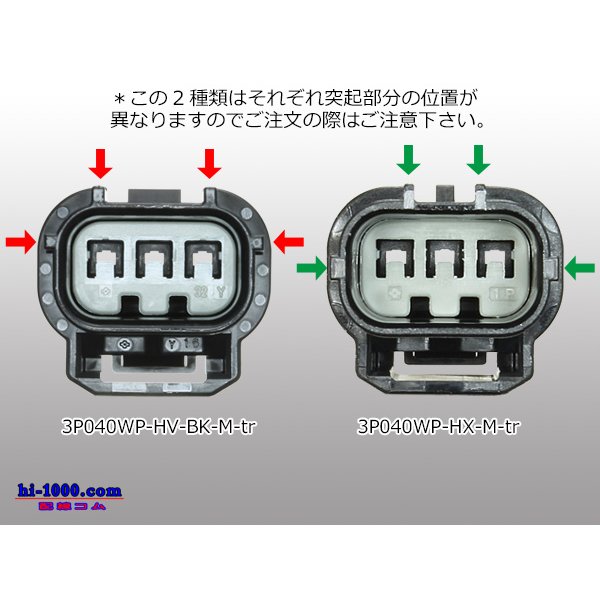

*Due to the change in the manufacturer series name, the former "3P040WP-HX-4775-M-tr"
This product has been changed to "3P040WP-HV-BK-M-tr".
Please note that the shape, etc. has not changed from the previous one.
Brand: Sumitomo Wiring Systems
Series:HV/HVG waterproofing series
Standard size:040
Hue:Black
Gender:Male
Number of Positions:Waterproofing 3 Position
Terminal / Wire seal:selling separately
Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.
◆F side connector(No terminals)
"3P040WP-HV-BK-F-tr"
■M terminal(0.75-1.25㎟) + wire seal(M size)
"M040WP-HX"
for AVS0.75-0.85mm2
■M terminal(0.3-0.5㎟) + wire seal(M size)
"M040WP-HX-HV0305-M"
for AVS0.5mm2
■M terminal(0.3-0.5㎟) + wire seal(SS size)
"M040WP-HX-HV0305-SS"
for AVSS/AVSSB/AVSSC/0.3mm2
■M terminal individually
"M040WP-HX-wr"
for 0.75-1.25㎟
■M terminal individually
"M040WP-HX-HV0305-wr"
for 0.3-0.5㎟
■Wire seal(M size)
"WS7165-0622HX-MV"
for 1.8-2.2mm
■Wire seal(SS size)
"WS7165-1075-HX-HV-OR"
for 1.1-1.6mm
■Dummy plug
"DP7165-0432-BK"
Please use without terminals.
