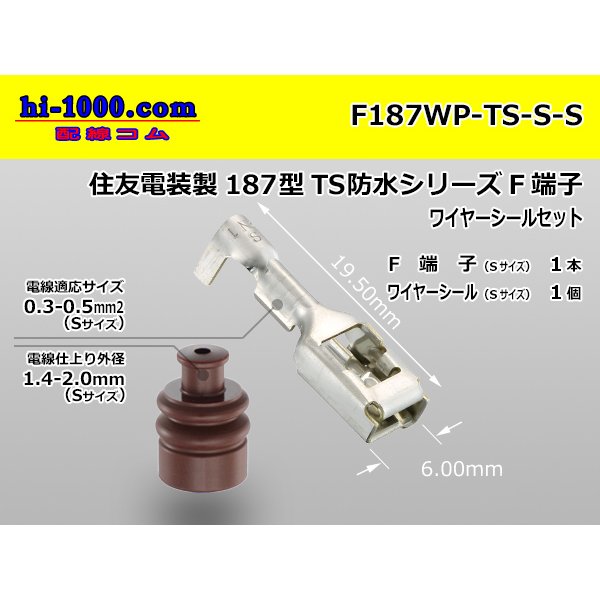

It is one female terminal (small size) and set product of one wire seal (small size).
In the case of use, please choose this product by an electric wire of AVS 0.3-0.5mm2.
Product contents
Maker Sumitomo Wiring Systems
Series TS/HX/DL
Standard size 187
Waterproofing/non-waterproofing Waterproofing
M/F F
Correspondence electric wire size of the terminal AVS0.3-0.5mm2 (small size)
*Electric wire finish outer diameter of WS 1.4-2.0mm (small size) attachment
In the case of an unnecessary, a wire seal is this in a terminal simple substance
◆"Only a terminal" F187WP-TS-S-wr
Adaptation electric wire size AVS0.3-0.5mm2 (small size)
Simple substance of the corresponding wire seal
■Small size wire seal "WS7165-0346TS-DL-DBR"
●Application electric wire size 0.3-0.85mm2 (AVS/AVSS/AVSSX)
●Electric wire finish 1.4-2.0mm outside diameter
*WS = wire seal
