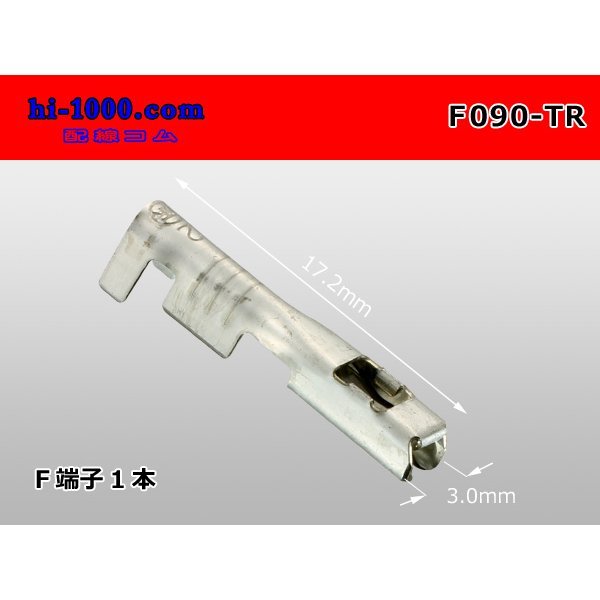

090 model non-waterproofing F terminal /F090-TR (this product is one price.) made by TOKAI RIKA

A maker: TOKAI RIKA
A standard: 090 type
A name: 2.3(090) type
A maker model number: 4R1120-0003

Application electric wire size: 0.5-1.25mm2 (AVS/CAVS)
Surface-treat: Sn

※A form is the same, and there is the product of the other maker, too.
"F090" (product made by Yazaki Corporation)
It is available to "F090-SWS" connector having the same it (product made by Sumitomo Wiring Systems).

※It is the product of the stock limit.

Recommended pressure bonding tool "PAD-13," "even other P-706" is possible
＊Indication of the pressure bonding processing
"PAD-13" conductor part 2.5-2.8 cover abdomen 2.8-3.1 "P-706" conductor part 2.4M cover abdomen 2.4H (it may be just mixed up by an electric wire to use which is an indication.)
