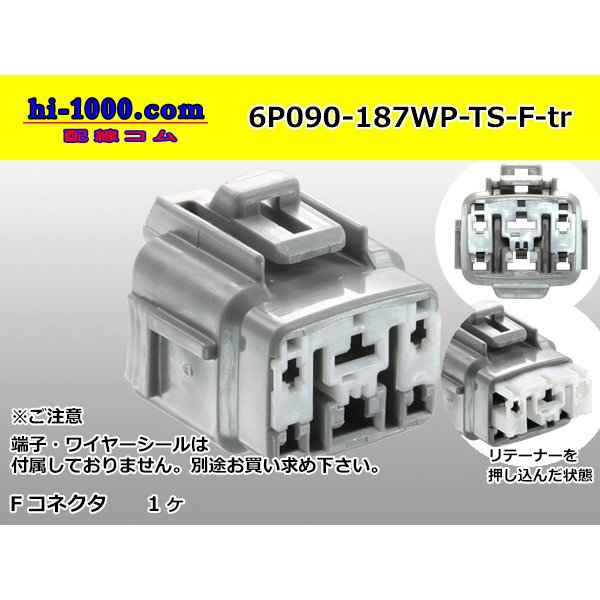

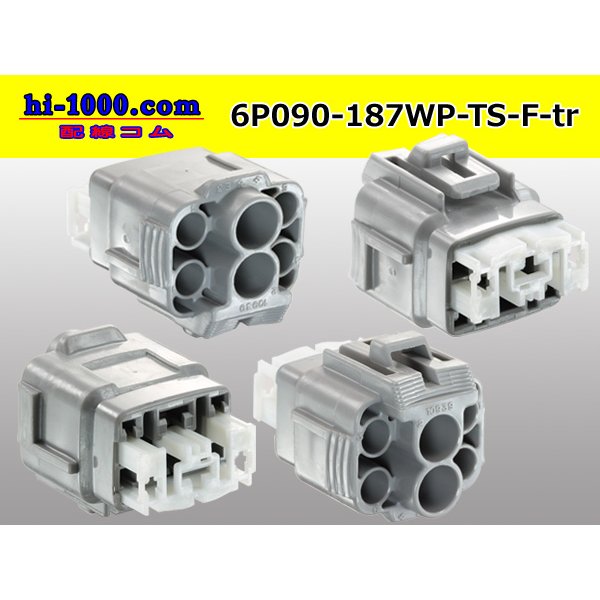

This product is F side connector.

Please buy the F terminal, the wire seal and dummy plug are separately.

＊There is not the maker setting of the M side connector.


Toyota genuine part number 90980-10939 equivalency product



Brand： Sumitomo Wiring Systems

Series：TS waterproofing series

Standard size：090-187

Hue：Gray

Gender：Female

Number of Positions：Waterproofing 6 Position (090 type:4 Position / 187 type:2 Position)

Terminal / Wire seal：selling separately



＊There is not the maker setting of the M side connector.





Corresponding terminals separately prepare it as follows.

Please find necessary amount.

In addition, it is available as a spare for the repair.



↓ 090 ↓



■F terminal + wire seal

"F090WP-TS"

for AVS0.5-1.25mm2

■F terminal individually

"F090WP-TS-wr"

■Wire seal

"WS7165-0395TS"



■Dummy plug

"7160-9465HM"

Please use without terminals.



★The terminal with the electric wire

"F090WP-TS-AVS05"




↓ 187 ↓



■F terminal + wire seal

◆for AVS0.5-1.25mm2

"F187WP-TS-M-M"

◆for AVS2.0-3.0mm2

"F187WP-TS-L-L"

◆for AVS3.0mm2

"F187WP-TS-L-LL"



■F terminal individually
◆Size:M

"F187WP-TS-M-wr"

◆Size:L

"F187WP-TS-L-wr"



■Wire seal

◆Size:M

"WS7165-0347TS-DL-DGRE"

◆Size:L

"WS7165-0348TS-DL-DGRY"

◆Size:LL

"WS7165-0356TS-DL-NV"
