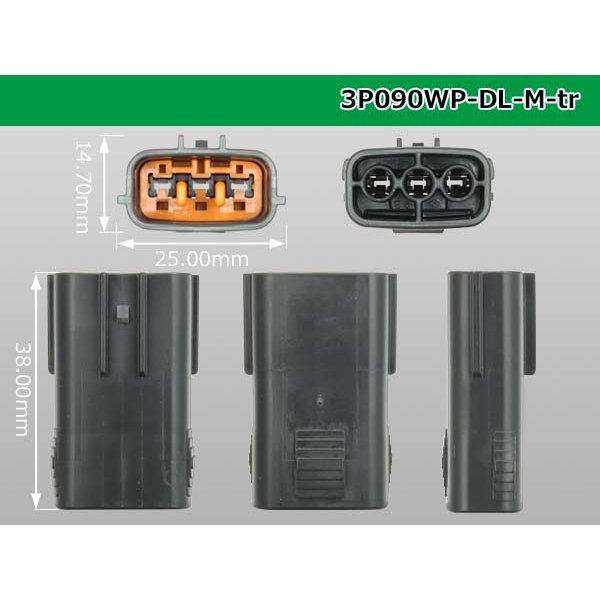

This product is M side connector.
Please buy the M terminal, the wire seal and dummy plug are separately.
In addition, the F side connector is not included, too.
please buy it separately.


Brand： Sumitomo Wiring Systems
Series：DL waterproofing series
Standard size：090
Hue：Gray
Gender：Male
Number of Positions：Waterproofing 3 Position
Terminal / Wire seal：selling separately


Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.



◆F side connector（No terminals)
"3P090WP-DL-F-tr"

■M terminal + wire seal（Ssize／Hue：Blue）
"M090WP-HX-DL-SL-MS"
for AVS0.85 or less

■M terminal + wire seal（Msize／Hue：Brown）
"M090WP-HX-DL-SL-MM"
for AVS1.25mm2

■M terminal individually
"M090WP-HX-DL-SL-wr"
for 0.85-1.25mm2

■Wire seal（Ssize／Hue：Blue）
"WS7165-0118HW"
for 0.3-0.85mm

■Wire seal（Msize／Hue：Brown）
"WS7165-0119HX-HW-DL"
for 2.1-2.9mm

■Dummy plug
"7161-9787HW"
Please use without terminals.

※After inserting the terminal into the connector, insert the retainer and lock it.
