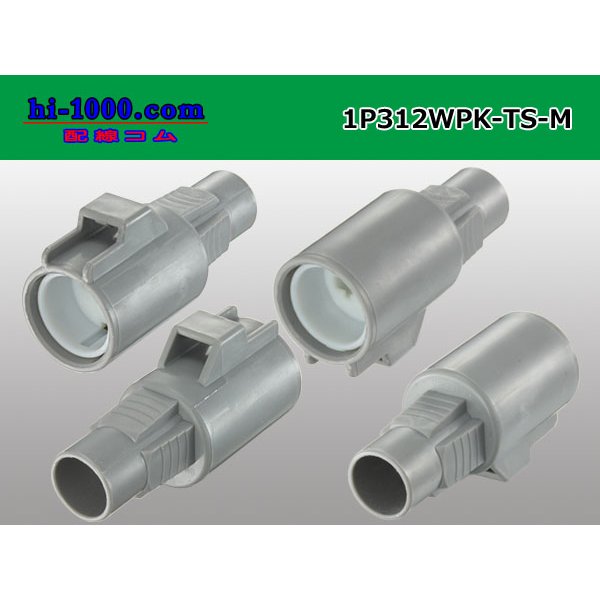

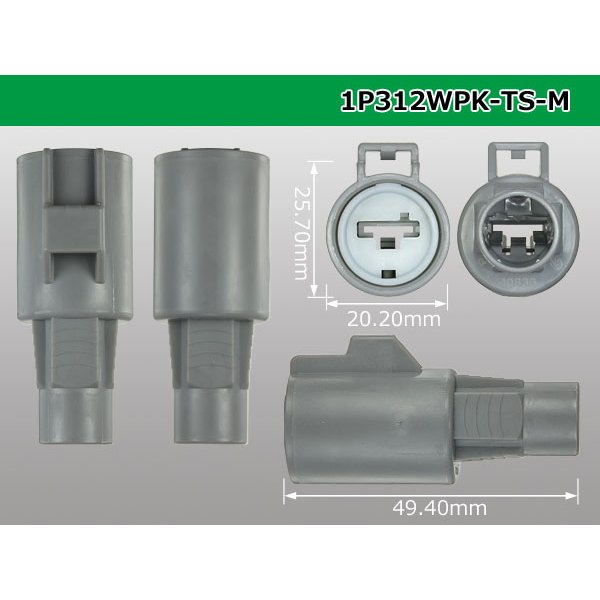

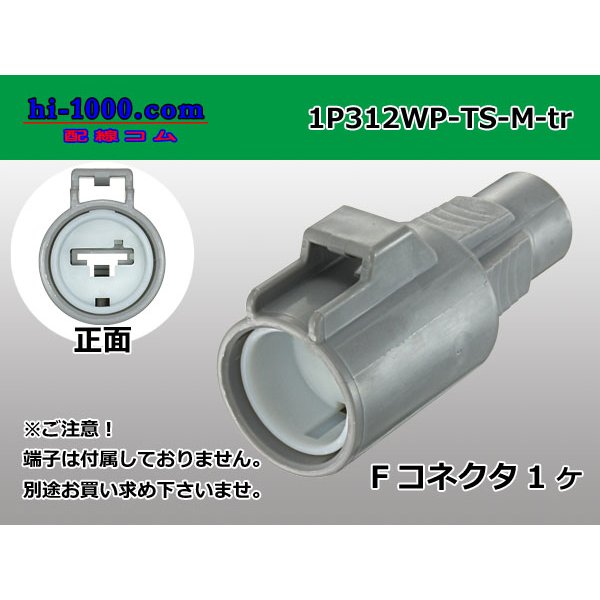

●[sumitomo] 312 type TS waterproofing series 1 pole M connector (no terminals) /1P312WP-TS-M-tr [1P312WP-TS-M-tr]

This product is M side connector and Retainer. Please buy M terminal, the wire seal separately.
In addition, the F side of the counterpart is not included, too; please buy it separately.
Toyota pure article number 90980-10836 equivalency product

The corresponding terminal separately prepares it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.

■M terminal + wire seal
"M312WP-TS-3.0"
＊It supports an electric wire of AV/AVS3.0mm2.

■M terminal simple substance "M312WP-TS-3.0-wr"
Adaptation electric wire size 3.0㎟
Electric wire finish 2.6-4.1mm outside diameter
■Wire seal 312 type TS waterproofing series
"WS7165-0400-TS-SGR"
■Dummy stopper
"DP7165-0180-BK"
I use it for the part without the terminal.

A fitting counterpart is this
◆”1P312WP-TS-F-tr"
