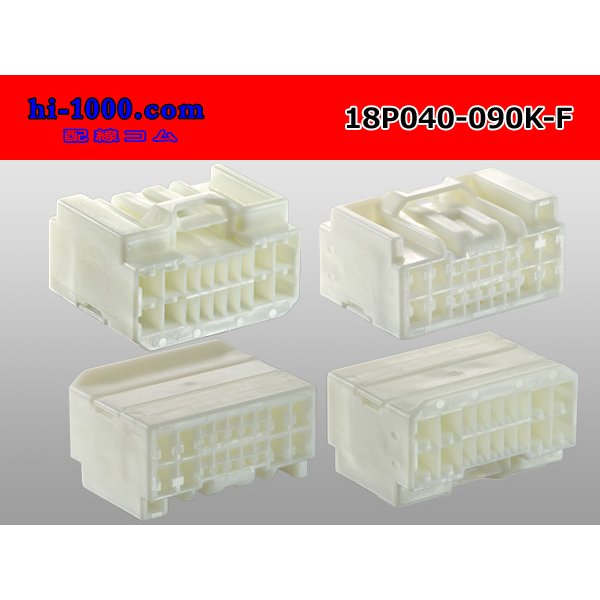

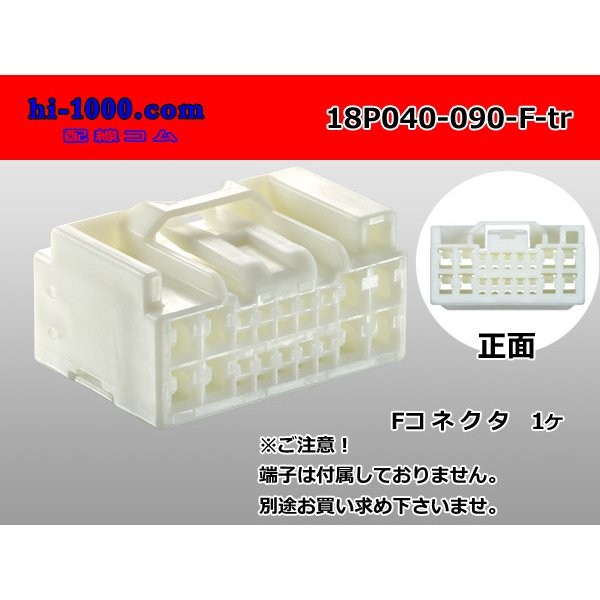

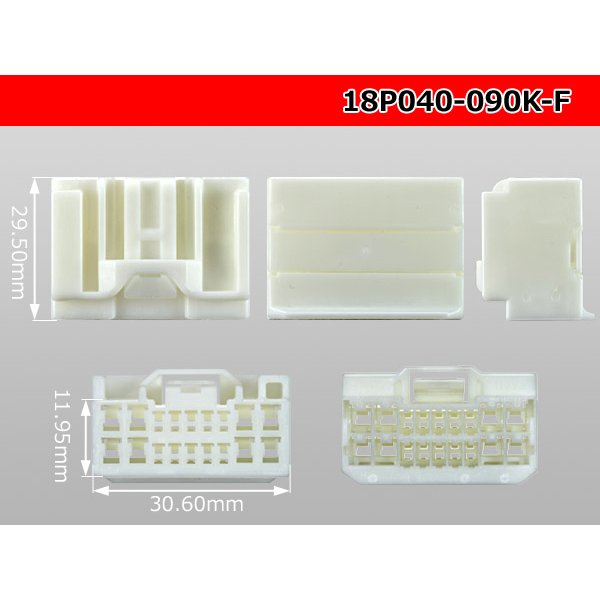

●[yazaki] 040+090 type hybrid 18 pole F connector (no terminals) /18P040-090-F-tr [18P040-090-F-tr]

Only as for 040 model +090 type hybrid 18 pole F connector made by Yazaki Corporation, it is (terminal nothing) /18P040-090-F-tr.
Toyota pure article number 90980-11973 equivalency product
This product is only the F side connector.
In addition, please be careful as a connector, the terminal of the fitting counterpart are not attached.

The corresponding terminal prepares separately as follows.
In addition, you can use it as a spare for the repair.

040 type (ten places)
■040 F terminals
"F040"
Electric wire adaptation size 0.3-0.5mm2

090 type (eight places)
■090 F terminals
"F090-SMTS"
Electric wire adaptation size 0.5-1.25mm2

040 models (ten places) that the terminal with the electric wire is the terminal which crimps it, and has been processed
■F terminal with 040 electric wires
"F040-CAVS05"

090 type (eight places)
■F terminal with 090 electric wires
"F090-SMTS-CAVS05"

A fitting counterpart is this
■"18P040-090-M-tr" (no terminals)
