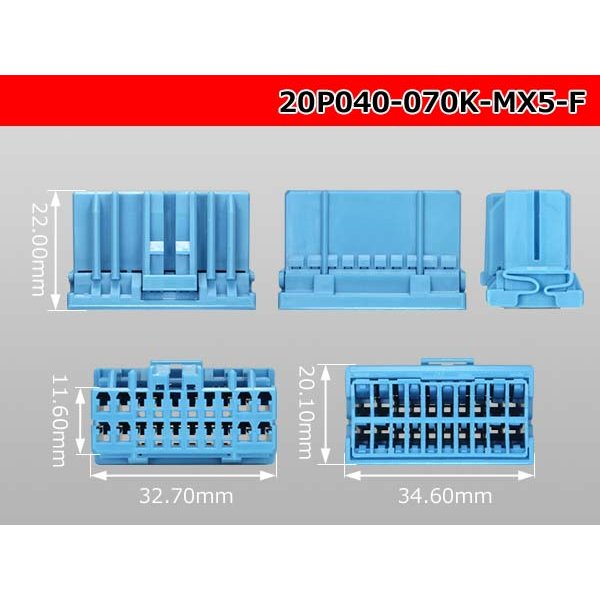

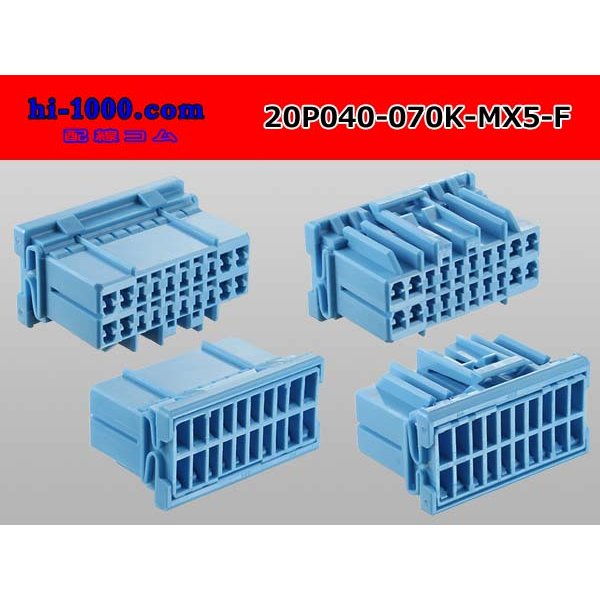

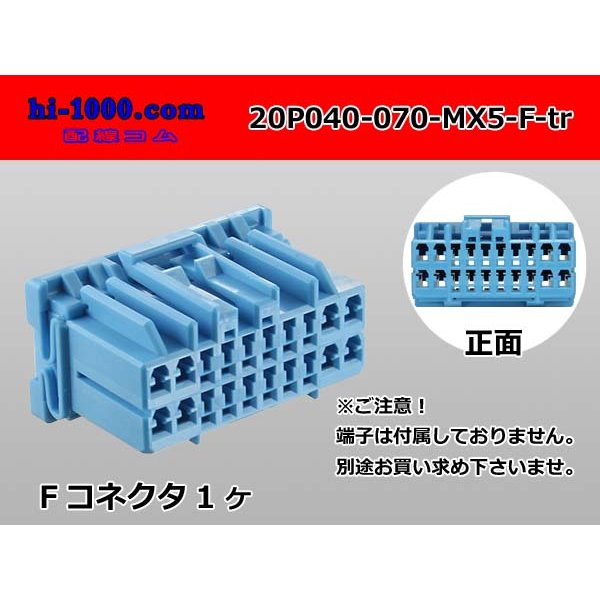

●[JAE] 040+070 type hybrid 20 pole F connector (no terminals) /20P040-070-MX5-F-tr [20P040-070-MX5-F-tr]

Only as for 040+070 type hybrid 20 pole F connector made in JAE, it is (no terminals) /20P040-070-MX5-F-tr.
As for this product, the terminal, please find for necessary number only in a connector separately.

The corresponding terminal prepares separately as follows.
In addition, you can use it as a spare for the repair.

040 type (12 places)
■040 F terminals
"F040-JAE-MX5-SG"
Electric wire adaptation size 0.2-0.5mm2

070 type (eight places)
■070 F terminals
"F070-JAE-MX5-PW"
Electric wire adaptation size 0.5-1.25mm2

A fitting counterpart is this
■"20P040-070-MX5-M-tr" (no terminals)

＊It becomes the doubleness locking structure to fix a terminal lacking in the insertion to the authorized position by attaching hinge-type Retainer.
