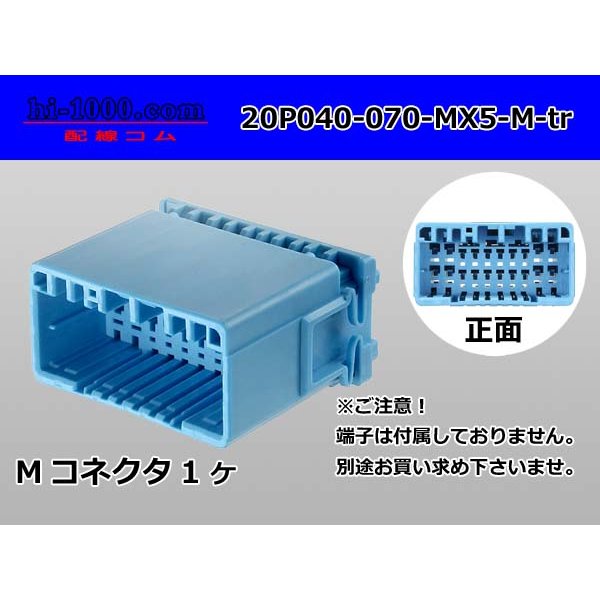

●[sumitomo] 040+070 type hybrid 20 pole M connector (no terminals) /20P040-070-MX5-M-tr [20P040-070-MX5-M-tr]

Blue hybrid M connector (terminals) /20P040-070-MX5-M-tr made in 20P040 type +070 type JAE.
As for this product, the terminal, please find for necessary number only in a connector separately.

The corresponding terminal separately prepares it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.

040 type (12 places)
■040 M terminals
"M040-JAE-MX5-SG"
Electric wire adaptation size 0.2-0.5mm2

070 type (eight places)
■070 M terminals
"M070-JAE-MX5-PW"
Electric wire adaptation size 0.5-1.25mm2

A fitting counterpart is this
■"20P040-070-MX5-M-tr" (no terminals)

＊It becomes the doubleness locking structure to fix a terminal lacking in the insertion to the authorized position by attaching hinge-type Retainer.
＊It is "the direct connection harness" of the example in the image, but it is an example to say that I can facilitate the installation to a small vehicle of the space of the navigator backside by I can omit Iiboshi of the halfway point by producing this and shortening full length, but it is that may not be suitable that it may not be an advantage, and this, please be careful in all different car models by a car model, too.
