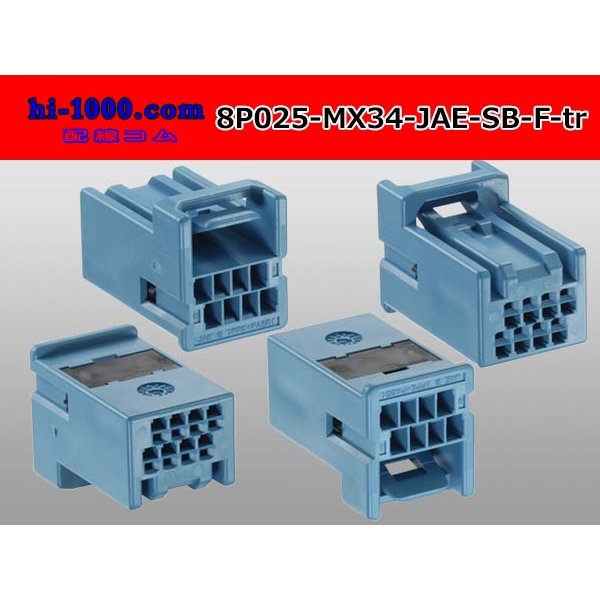

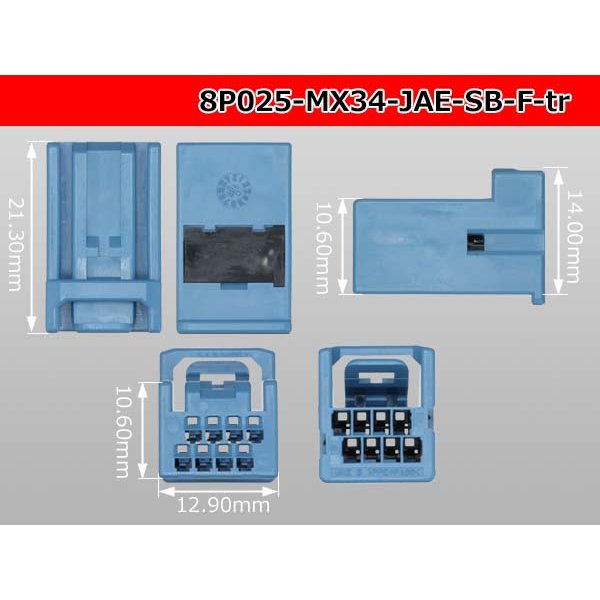

■[JAE] MX34 series 8 pole [color Sky blue] F Connector (No terminal) /8P025-MX34-JAE-SB-F-tr [8P025-MX34-JAE-SB-F-tr]

This product is only the F side connector.
Please buy the F terminal separately.
In addition, the M side connector is not included, too.
please buy it separately.

Brand： JAE Electronics
Series：MX34
Standard size：025
Hue：sky blue
Gender：Female
Number of Positions：Non-waterproofing 8 Position(uneven * top and bottom)

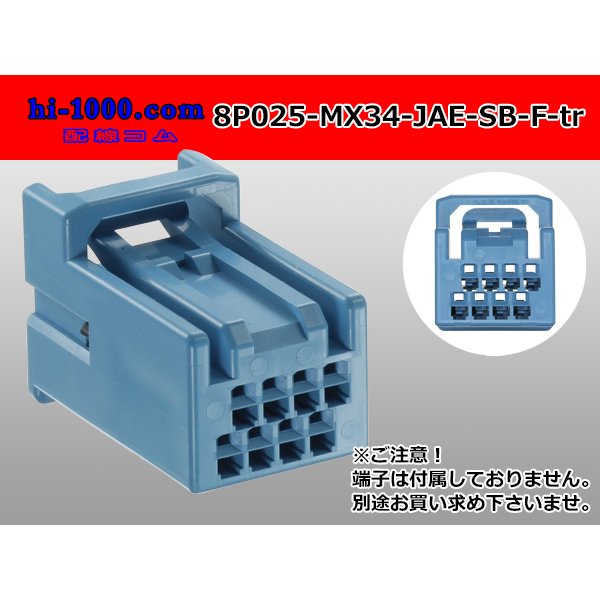

Terminal：selling separately

Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.

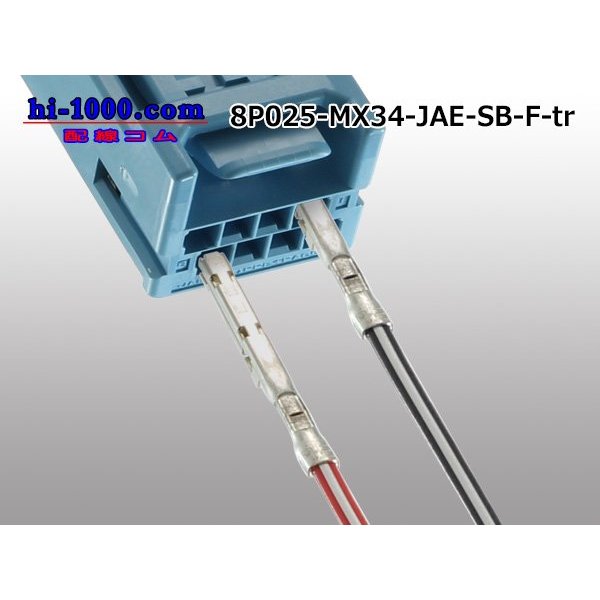

■F terminal(S size)
"F025-MX34-JAE-F1"
0.22-0.35mm2 electric wire use
■F terminal(M size)
"F025-MX34-JAE-F2"
AVSS0.5mm2 (lightly limited to coating.)

◆M side connector(angle pin header type)
"8P025-MX34-N-JAE-M"


■the top and bottom of the terminal has equal type（No terminals)
"8P025-MX34-JAE-S-GY-F-tr"
