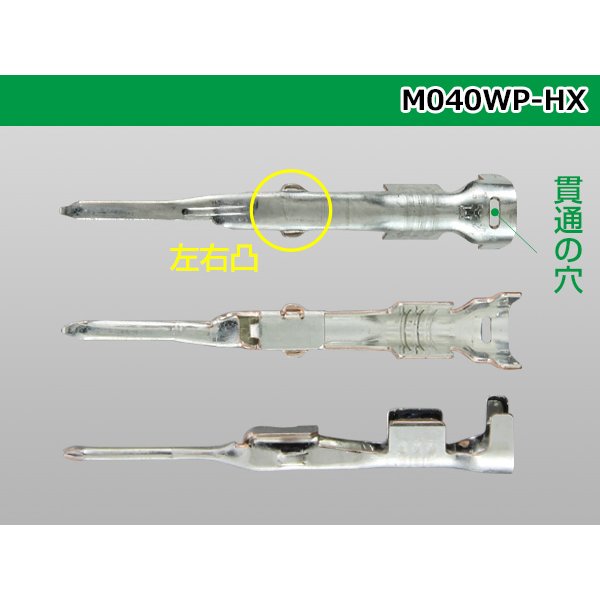

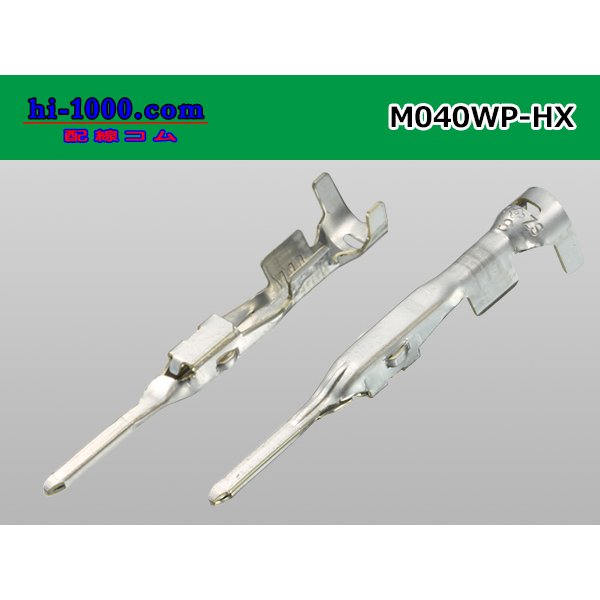

■[Sumitomo] 040 type HX/HV/HVG waterproof M terminal [medium size] (belonging to medium size WS) [M040WP-HX]

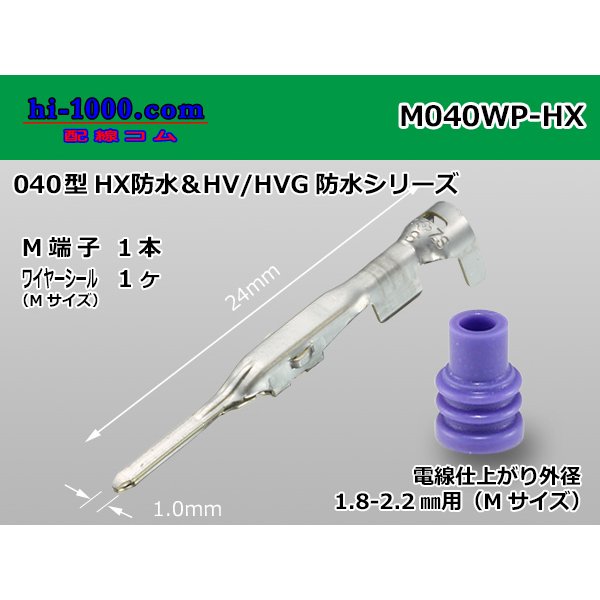

It is the set product of Sumitomo 040 type HX/HV/HVG waterproofing M terminal (medium size) and the wire seal (medium size).
By the combination mentioned above
It becomes that it supports an electric wire of AVS0.75-0.85.

■Medium size terminal
Electric wire finish 1.8-2.2 millimeters outside diameter of the application
　electric wire size 0.75-1.25 square millimeter terminal of the terminal

■Medium size wire seal
Application electric wire size 0.5-0.85mm2 (AVS)
Electric wire finish 1.8-2.2 millimeters outside diameter

＊An electric wire of AVS0.5 the use
"M040WP-HX-HV0305-M"

＊An electric wire of AVSS0.3 the use
"M040WP-HX-HV0305-SS"
As you prepare this separately, please use it.
