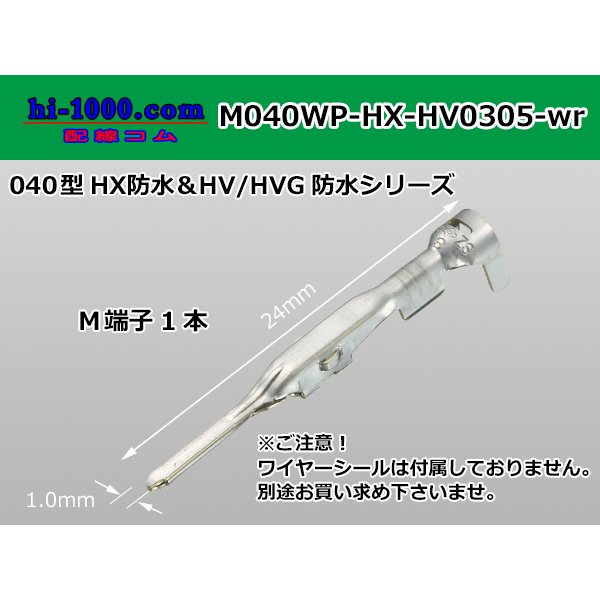

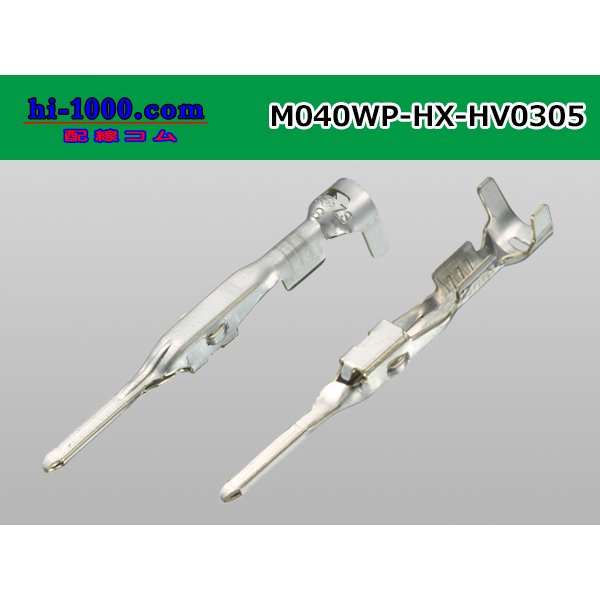

■[Sumitomo] 040 type HX/HV/HVG waterproof M terminal [small size] (No wire seal) / M040WP-HX-HV0305-wr [M040WP-HX-HV0305-wr]

Sumitomo 040 type HX/HV/HVG waterproofing M terminal (small size) terminal simple substance

●Application electric wire size 0.3-0.5 square millimeter of the terminal
●Electric wire finish 1.4-2.0 millimeters outside diameter of the terminal

■Corresponding wire seal (separate sale)
●SS size "WS7165-1075-HX-HV-OR" (orange)
It becomes that it supports an electric wire of AVSS0.3 by putting the wire seal mentioned above together.

●Medium size "WS7165-0622HX-MV" (light purple)
It becomes that it supports an electric wire of AVS0.5 by putting the wire seal mentioned above together.
