■[sumitomo]040 Type HX/HV/HVG /waterproof/ F terminal ( SS sizewith WS)/ F040WP-HX-HV0305-SS [F040WP-HX-HV0305-SS]

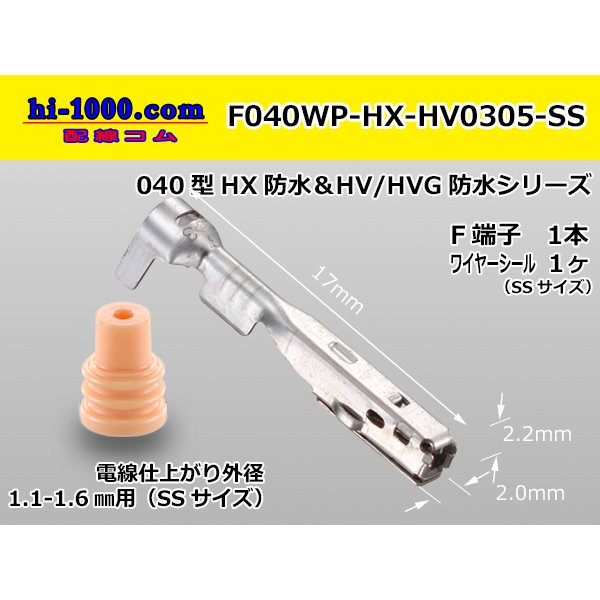

It is the set product of Sumitomo 040 type HX/HV/HVG waterproofing F terminal (small size) and the wire seal (SS size).
By the combination mentioned above
It becomes that it supports an electric wire of AVSS0.3.

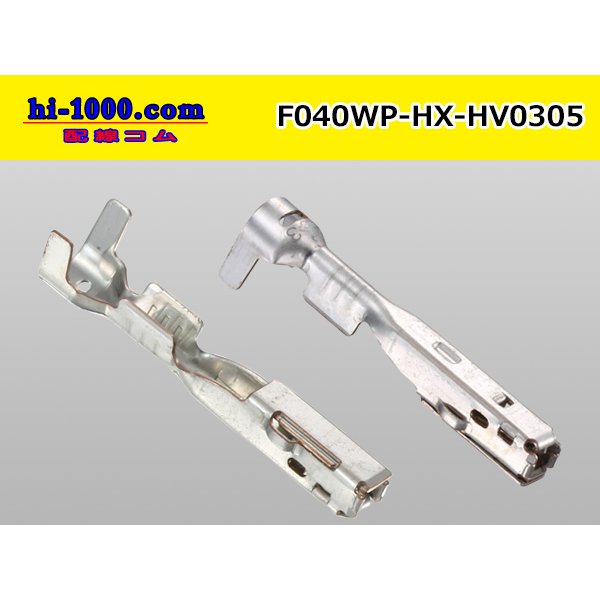

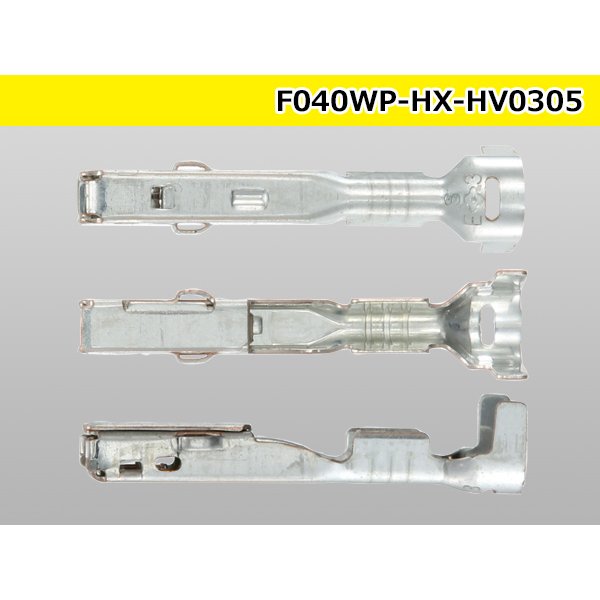

■Small size terminal
Electric wire finish 1.4-2.0 millimeters outside diameter of the application
　electric wire size 0.3-0.5 square millimeter terminal of the terminal

■SS size wire seal
Application electric wire size 0.3-0.mm2(AVS)
Electric wire finish 1.1-1.6 millimeters outside diameter

＊An electric wire of AVS0.5 the use
"M040WP-HX-HV0305-M"
"F040WP-HX-HV0305-M"

＊An electric wire of AVS0.75-0.85 the use
"M040WP-HX"
"F040WP-HX"
As you prepare this separately, please use it.
