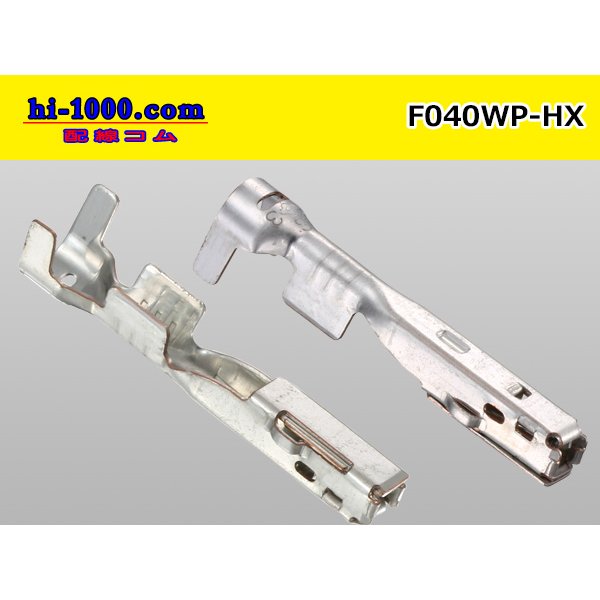

■[sumitomo]040 Type HX series /waterproof/ F terminal (With M size wire seal) / F040WP-HX [F040WP-HX]

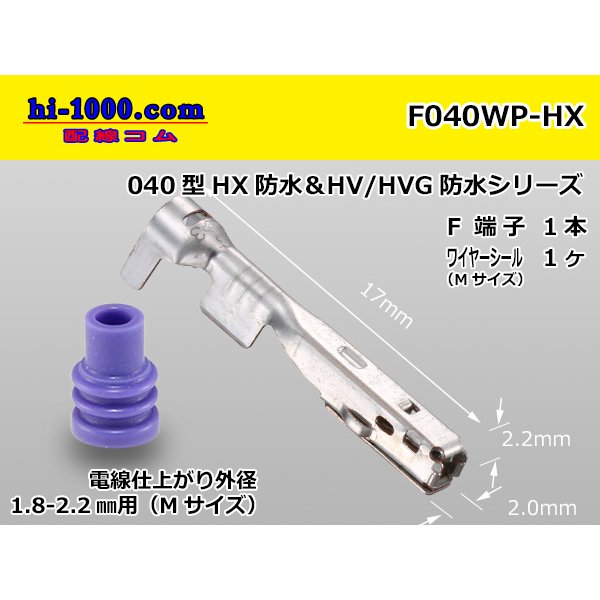

It is the set product of Sumitomo 040 type HX/HV/HVG waterproofing F terminal (small size) and the wire seal (medium size).
By the combination mentioned above
It becomes that it supports an electric wire of AVS0.5.

■Small size terminal
Electric wire finish 1.4-2.0 millimeters outside diameter of the application electric wire size 0.3-0.5mm2 terminal of the terminal

■Medium size wire seal
Application electric wire size 0.5-0.85mm2 (AVS)/0.75-1.25mm2(AVSS)
Electric wire finish 1.8-2.2 millimeters outside diameter

＊An electric wire of AVS0.75-0.85 the use
"F040WP-HX"

＊An electric wire of AVSS0.3 the use
"F040WP-HX-HV0305-SS"
As you prepare this separately, please use It.
