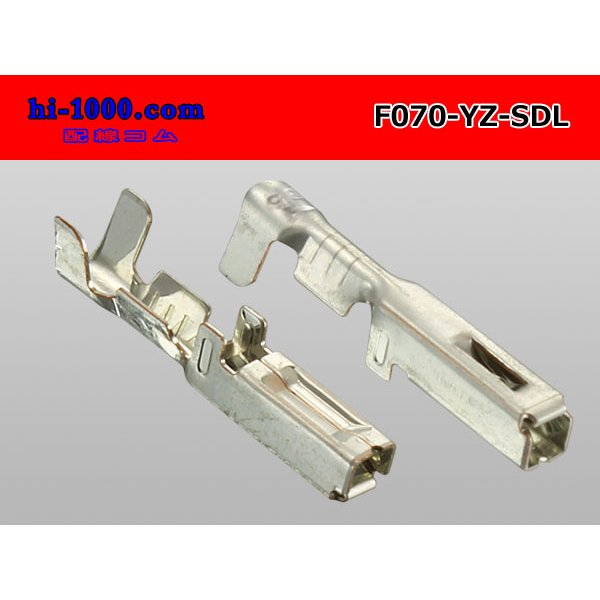

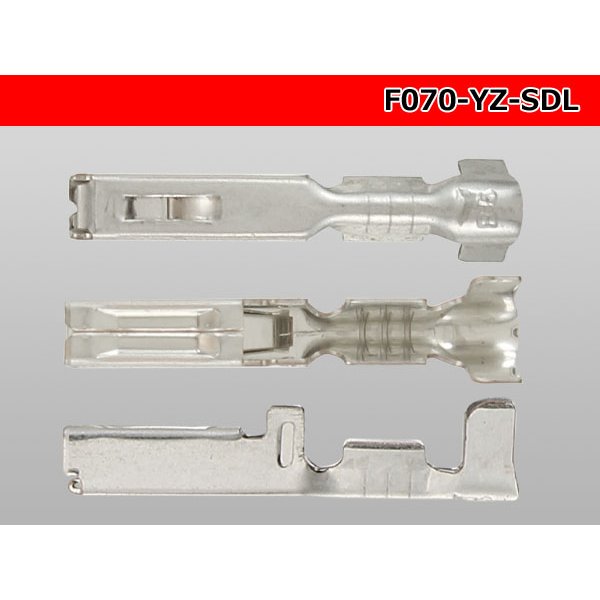

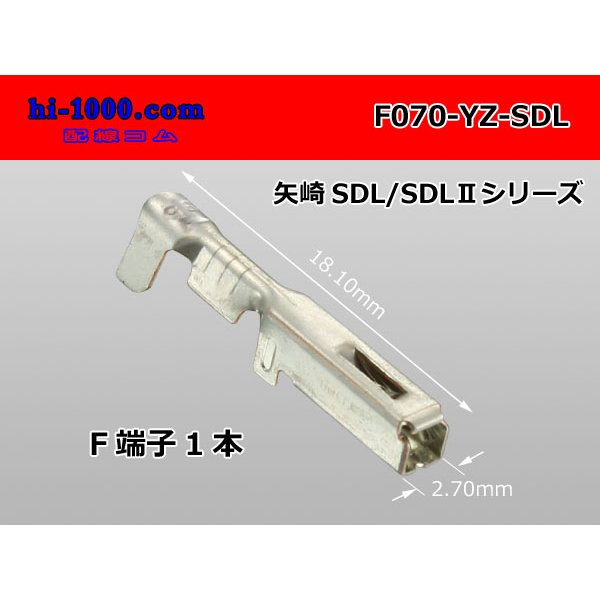

● [yazaki] 060SDL_SDL-II Non waterproof female Terminal /M070-YZ-SDL [F070-YZ-SDL]

Non-waterproofing F terminal /F070-YZ-SDL for Yazaki SDL connector, the SDL-II connector

Application electric wire size 0.3-0.85mm2 (AVS/CAVS)

Recommended pressure bonding tool "PAD-13" "P-706"
＊Indication of the pressure bonding processing
"PAD-13" conductor part 2.5 cover abdomen 2.8
2.4 L of "P-706" conductor part 2.0H cover abdomens (just an indication)
