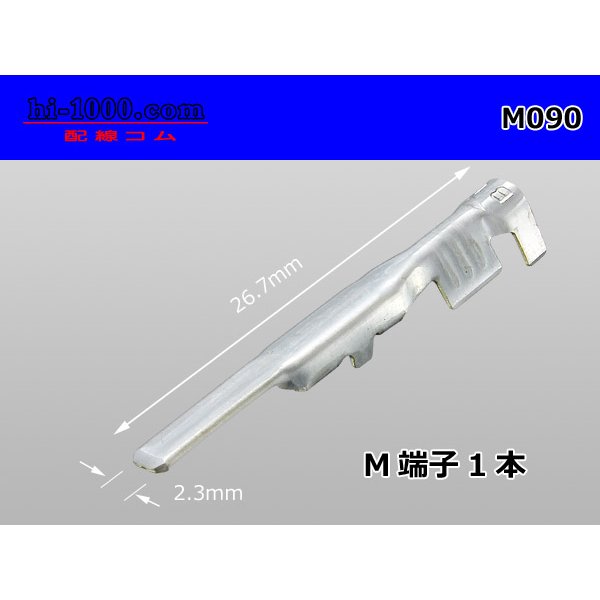

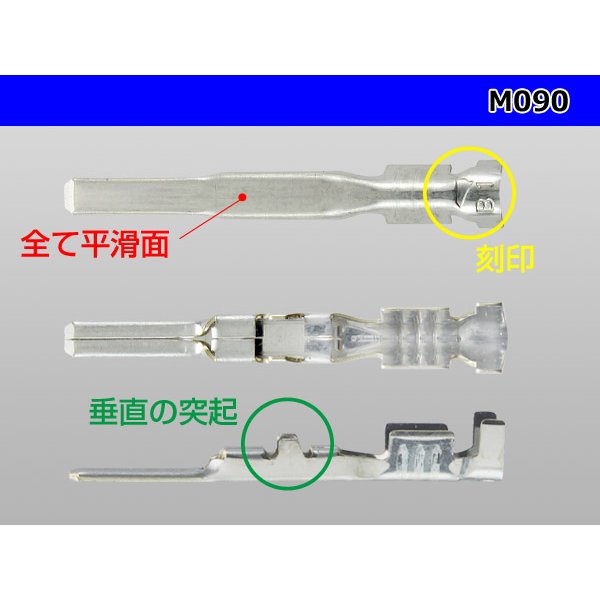

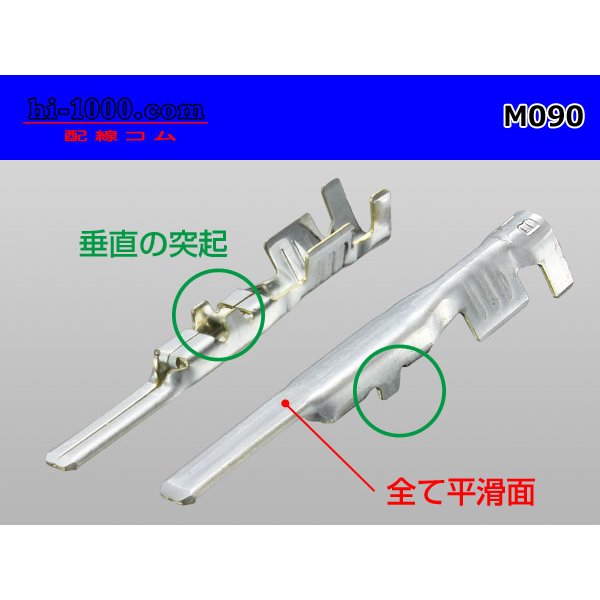

●[Yazaki] 090 type HM/MT series non-waterproofing male terminal /M090 [M090]

I cope with Yazaki 2.3(090) series and Sumitomo 090 type HM/MT/DS/HD series.
(this product is one price.)
＊Toyota pure parts 82998-12160 equivalency product

Application electric wire size of the terminal 0.85-1.25 square millimeter

Recommended pressure bonding tool "PAD-13," "even other P-706" is possible
＊Indication of the pressure bonding processing
"PAD-13" conductor part 2.5-2.8 cover abdomen 2.8-3.1 "P-706" conductor part 2.4M cover abdomen 2.4H (it may be just mixed up by an electric wire to use which is an indication.)
