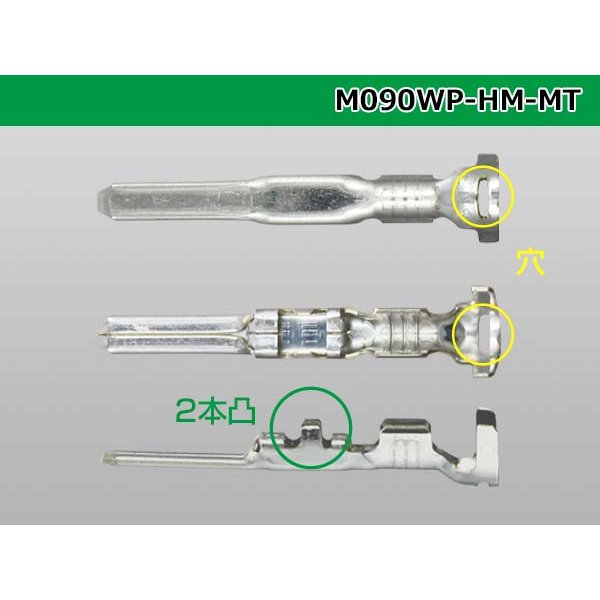

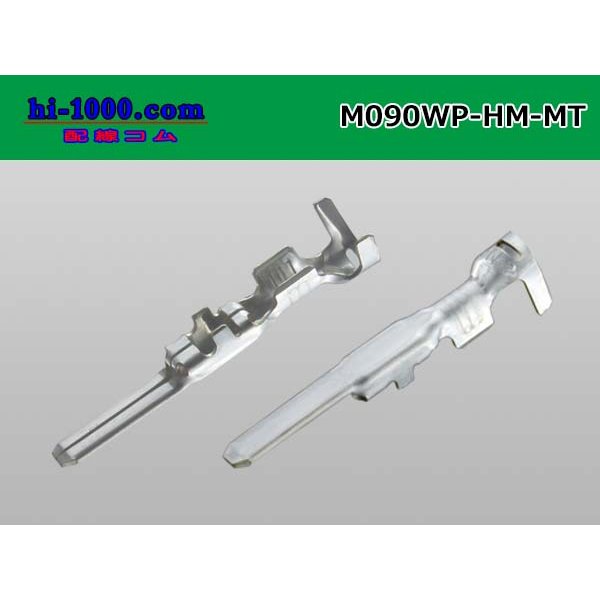

●[sumitomo]090 Type HM/MT /waterproofing/ male terminal /M090WP-HM/MT [M090WP-HM-MT]

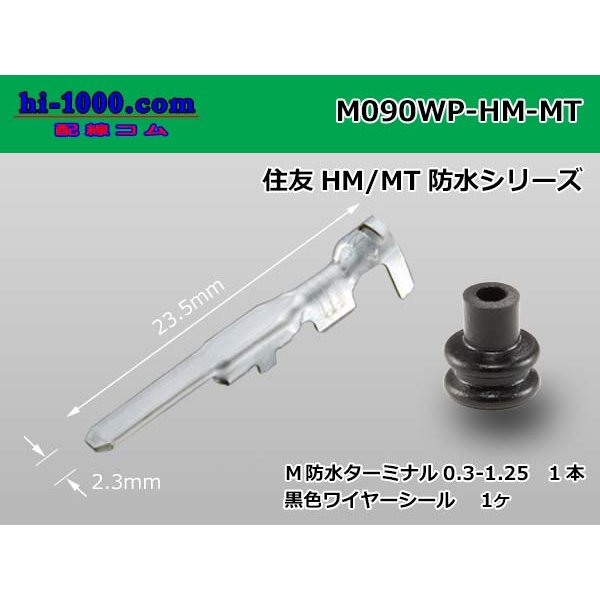

It is 090 type HM/MT waterproofing "male terminal one + wire seal one".

Electric wire finish 1.4-2.9 millimeters outside diameter of the application electric wire size 0.3-1.25 square millimeter terminal of the terminal

Application electric wire size 0.5-1.25 millimeters (AVS) of the wire seal
Electric wire finish 1.7-2.7 millimeters outside diameter of the wire seal

It supports an electric wire of AVSSB0.5/AVS0.5-1.25 by the combination mentioned above.

Terminal simple substance
Only as for 090 type HM/HW/MT [waterproofing] male terminal, it is /M090WP-HM/HW/MT-wr (there is no wire seal)

Wire seal
One black /WS7160-8234HM-MT-1 where it is for wire seal HM/MT/SMDC (waterproofing rubber stopper)

Window shade (dummy) stopper
Window shade (dummy) rubber stopper black /7160-9465HM-1 for the 090 type HM/MT/TS waterproofing coupler
