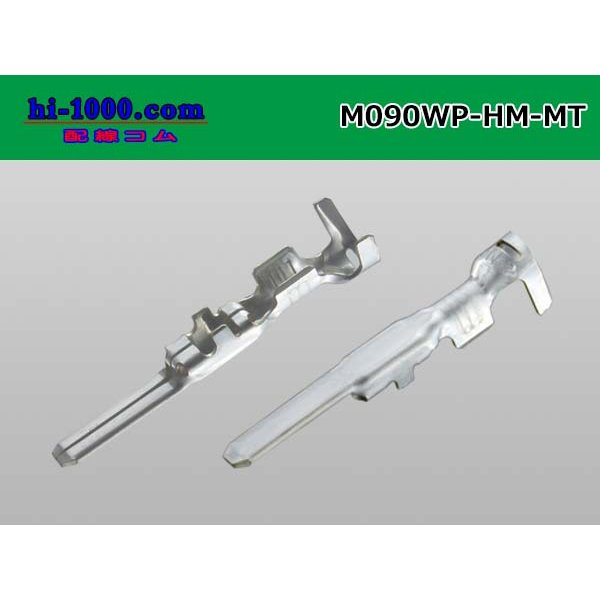

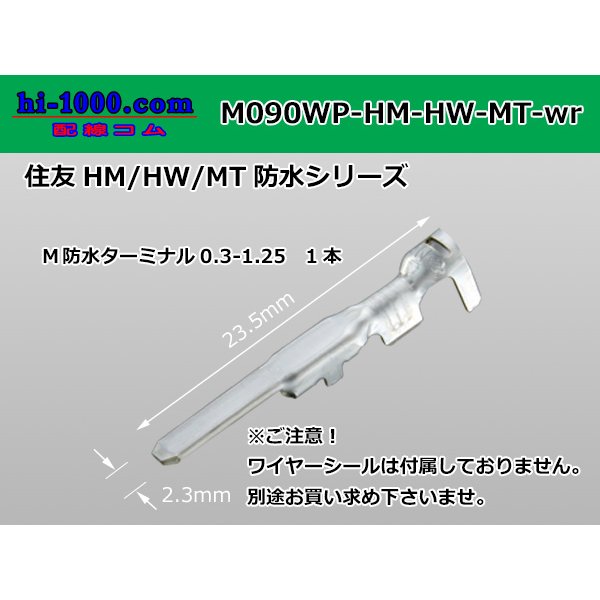

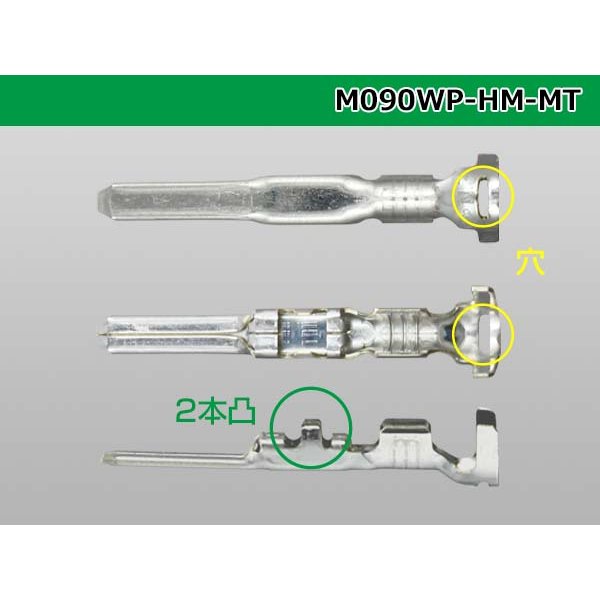

●[sumitomo]090 Type HM/HW/MT waterproofing male terminal only ( No wire seal )/M090WP-HM/HW/MT-wr [M090WP-HM-HW-MT-wr]

■Size 090
■Application electric wire size 0.3-1.25 square millimeter
■Electric wire finish 1.4-2.9 millimeters outside diameter
■Materials brass
■Surface treatment Sn plating
■0.3 millimeters of board thickness

You can use this product in each connector of the "HM" "HW" "MT" by combining it with a wire seal of each following series only with a terminal on the M side

●In "HM/MT series" in the case of use
■Please use a wire seal of "WS7160-8234HM-MT".

●In "HW series" in the case of use
■"WS7165-0118HW-1" wire seal S type blue (wire seal for 1.7-2.4mm outside diameter)
