●[sumitomo]090 Type HW /waterproofing/ female terminal /F090WP-HW [F090WP-HW]

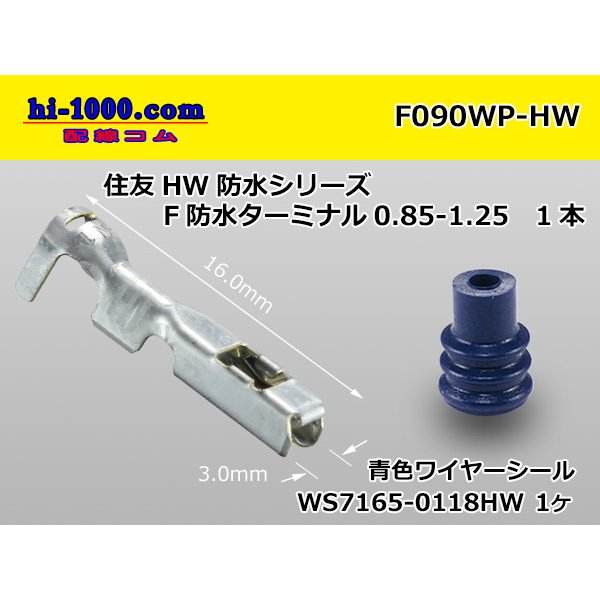

It is 090 type HW waterproofing "female terminal one + wire seal one".

Electric wire finish 1.4-2.9 millimeters outside diameter of the application electric wire size 0.3-1.25 square millimeter terminal of the terminal

Application electric wire size 0.3-0.85 millimeters (AVS) of the wire seal
Electric wire finish 1.7-2.4 millimeters outside diameter of the wire seal

Only the terminal without the wire seal
Only as for 090 type HM/HW/MT [waterproofing] female terminal, it is /F090WP-HM/HW/MT-wr (there is no wire seal)

I do it in this.

The wire seal for the repair Please choose him depending on an electric wire to use separately.
Wire seal S type (waterproofing rubber stopper) blue /WS7165-0118HW-1 (wire seal for 1.7-2.4mm outside diameter)

wire seal M type (waterproofing rubber stopper) brown /WS7165-0119HX/HW/DL (wire seal for 2.1-2.9mm outside diameter)
