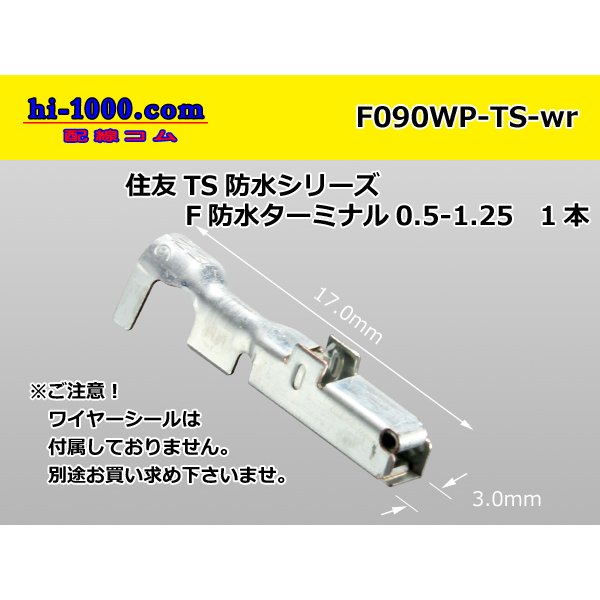

●[sumitomo]090 Type TS /waterproofing/ F terminal only ( No wire seal )/F090WP-TS-wr [F090WP-TS-wr]

This product, please buy the wire seal only with a female terminal separately, and the notation is a price of one terminal.
Toyota genuine parts
82998-12440 82998-12590 82998-12800 82998-12790 82998-12780
82998-12460 (the gilding) equivalency product

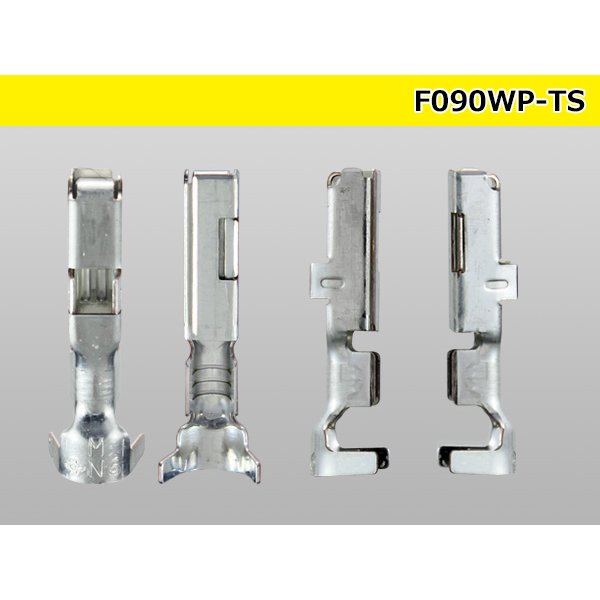

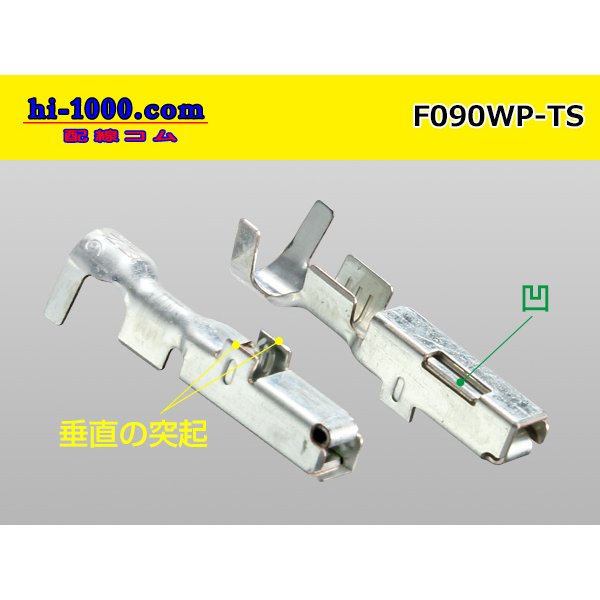

Sumitomo Wiring Systems 090 type TS waterproofing (2.3II) female terminal surface treatment Sn
Material heat resistance copper compound metal
Adaptation electric wire size 0.5-1.25mm2 (in the case of a terminal simple substance)

■Correspondence wire seal "WS7165-0395TS"
Electric wire finish 2.0-2.5 millimeters outside diameter
■The terminal with the electric wire is recommended! "F090WP-TS-AVS05"
I handle pressure bonding by P6 type.

■Wire seal "WS7165-0343TS-BK" of the P5 type
(for exclusive use of P5)
Electric wire finish 2.0-2.5 millimeters outside diameter
