■[SWS] AVS0.5f spool 30m Winding 　 [color Black] /AVS05f-30-BK [AVS05f-30-BK]

A price is a price of 1 reel of 30m.

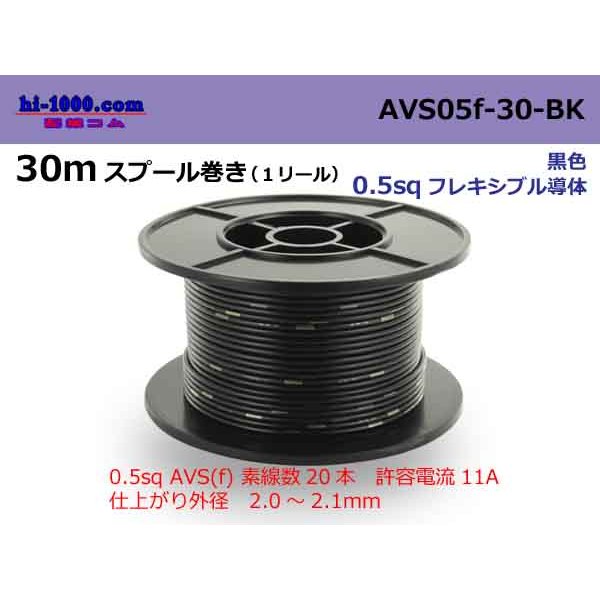

I send it in the state that I bound a spool with like an image.

I can use it in (four of them, two) low-pressure conductive trace where it is for a use car.
Characteristic CPAVS is Sumitomo name of AVS(f).
JASO D611 conformity
Because coating is light, I am suitable for production such as the wire harness.

Heat-resistant class 80 degrees Celsius
Maker Sumitomo Wiring Systems
Escalope low pressure electric wire (escalope electric wire type 1) standard size 0.5(f) flexible constitution for the series CPAVS car

Number of the wires/wire diameter (this /mm) 20/0.18
Conductor calculation cross section (mm2) 0.5087
Conductor outer diameter (mm) 1.0
Insulator thickness (mm) 0.5
Finish outer diameter (mm) 2.0-2.1

Current tolerance ambient temperature 40 degrees Celsius 11A in case of 0.5(f)
※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under the ambient temperature.
※The current tolerance in the image is notation in case of ambient temperature 40 degrees.
