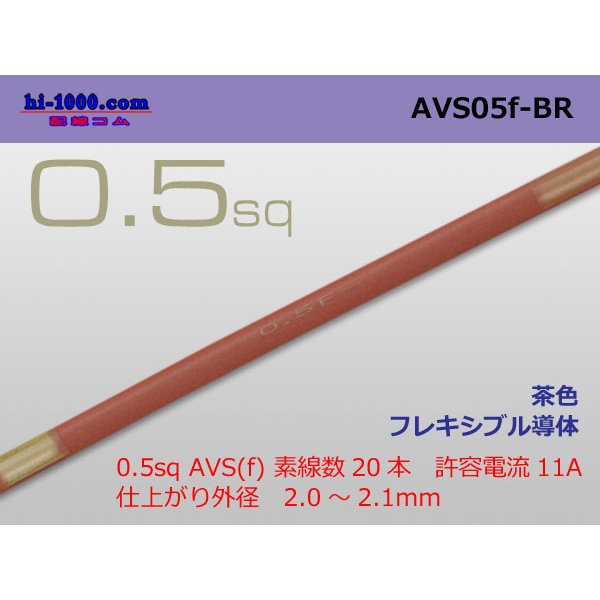

●[SWS] AVS0.5f (1m)　 [color Brown] /AVS05f-BR [AVS05f-BR]

A price is a price around 1m.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 800m as 1 reel becomes 800m.

I can use it in (four of them, two) low-pressure conductive trace where it is for a use car.
Characteristic CPAVS is Sumitomo name of AVS(f).
JASO D611 conformity
Because coating is light, I am suitable for production such as the wire harness.

Heat-resistant class 80 degrees Celsius
Maker Sumitomo Wiring Systems
Escalope low pressure electric wire (escalope electric wire type 1) standard size 0.5(f) flexible constitution for the series CPAVS car

Number of the wires/wire diameter (this /mm) 20/0.18
Conductor calculation cross section (mm2) 0.5087
Conductor outer diameter (mm) 1.0
Insulator thickness (mm) 0.5
Finish outer diameter (mm) 2.0-2.1

Current tolerance ambient temperature 40 degrees Celsius 11A in case of 0.5(f)
※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under the ambient temperature.
※The current tolerance in the image is notation in case of ambient temperature 40 degrees.
