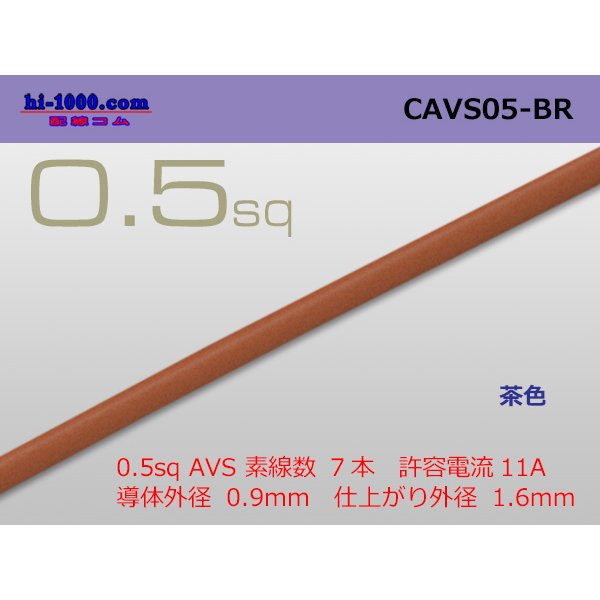

●[Yazaki] CAVS0.5 (1m)　 [color Brown] /CAVS05-BR [CAVS05-BR]

A price is a price around 1m.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes the number of the stock.
＊Please note that this product "is not flexible constitution".

Characteristic The escalope electric wire which compressed a circle to raise the roundness of the twist line conductor, and to improve the connection reliability of the pressure welding connector.
An insulator: Thickness 0.35mm. A JASO D611 conformity product.
Rating temperature 80 degrees Celsius

Maker Yazaki Corporation
Series Compression conductor escalope type low pressure electric wire for the CAVS car
Standard size 0.5
The number of the wires (book) 7
Conductor calculation cross section (mm2) 0.5629
Conductor outer diameter (mm) 0.9
Insulator thickness (mm) 0.35
Finish outer diameter (mm) 1.6
Current tolerance (A) 11

※The current tolerance is conductor best allowable temperature 80 degrees Celsius, a calculated value in case of ambient temperature 40 degrees Celsius.
