●[SWS] AVS0.75f spool 30m Winding 　 [color Orange] /AVS075f-30-OR [AVS075f-30-OR]

A price is a price of 1 reel of 30m.

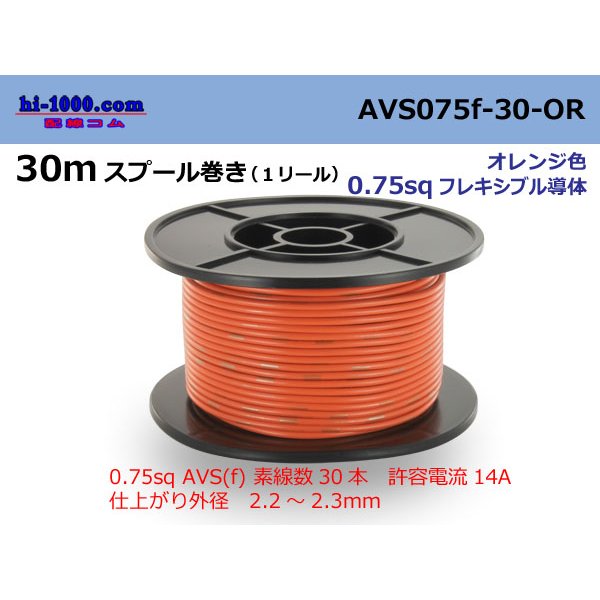

I send it in the state that I bound a spool with like an image.

Use I use it in (four of them, two) automotive low-pressure conductive trace.
Characteristic CPAVS is Sumitomo name of AVS(f).
JASO D611 conformity
Heat-resistant class 80 degrees Celsius

Maker Sumitomo Wiring Systems
Series Escalope low pressure electric wire (escalope electric wire type 1) for the CPAVS car
Standard size 0.75 (f) flexible constitution

Number of the wires/wire diameter (this /mm) 30/0.18
Conductor calculation cross section (mm2) 0.7630
Conductor outer diameter (mm) 1.2
Insulator thickness (mm) 0.5
Finish outer diameter (mm) 2.2-2.3
Current tolerance in case of 0.75 (f)
Ambient temperature (℃) 20 30 40 50 60 70
Current tolerance (A) 18 16 14 12 10 7
Heat-resistant class 80 degrees Celsius

※The heat-resistant class is conductor best allowable temperature when 10,000 hours were used as an indication at accumulation electricity time.
※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature.
※The current tolerance in the image is notation in case of ambient temperature 40 degrees.
