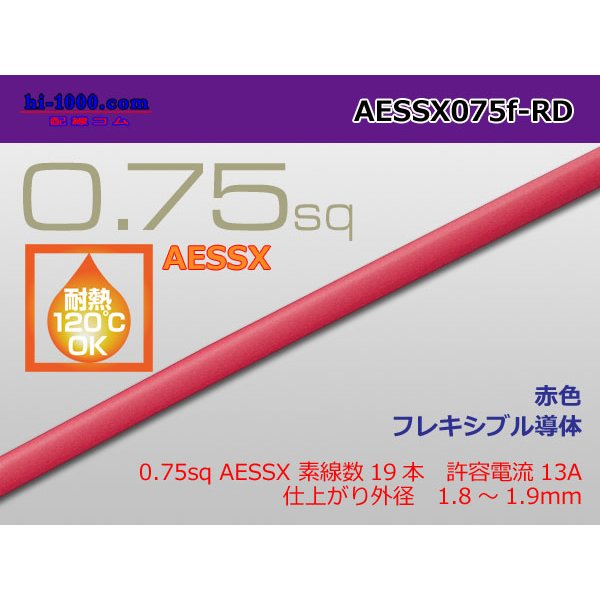

●[SWS]pole escalope heat-resistant electric wire AESSX0.75f (1m) red /AESSX075f-RD [AESSX075f-RD]

A price is a price around 1m.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 1,000m as 1 reel becomes 1,000m.

Use In (four of them, two) automotive low-pressure conductive trace, I can use heat-resistant (120 degrees Celsius) for the required part.
Characteristic AESSX is the electric wire which thinned an insulator of AEX.

Maker Sumitomo Wiring Systems
Series Pole escalope form crosslinked polyethylene insulation heat resistance low pressure electric wire for the AESSX car
Standard size 0.75 (f)

Number of the wires/wire diameter (this /mm) 19/0.23
Conductor calculation cross section (mm2) 0.7894
Conductor outer diameter (mm) 1.2
Insulator thickness (mm) 0.3
Finish outer diameter (mm) 1.8-1.9

Current tolerance in case of 0.75 (f)
Ambient temperature (℃) 20 30 40 50 60 70 80 90 100 110
Current tolerance (A) 21 20 19 17 16 15 13 11 9 6
Heat-resistant class 80 degrees Celsius

※The heat-resistant class is conductor best allowable temperature when 10,000 hours were used as an indication at accumulation electricity time.
※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature.
