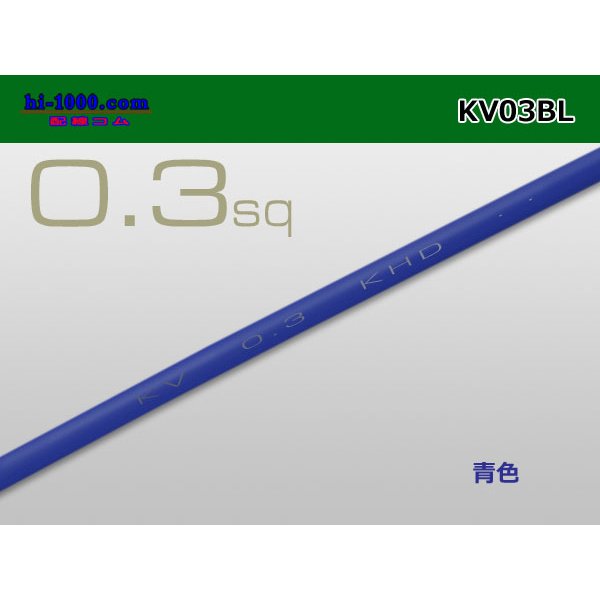

●KV0.3sq Electric cable (1ｍ) 　[color Blue]/KV03BL [KV03BL]

A price is a price around 1m.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 200m as 1 reel becomes 200m.

Use Internal wiring for an electron, the communications equipment
※I recommend the electric wire for the amusement apparatus in amusement

Characteristic I am superior in flexibility, workability.

Series Vinyl electric wire KV for a 300V electron, the communications equipment
Size 0.3
Number of the wires/wire diameter(this /mm) 12/0.18
Conductor outer diameter (mm) 0.7
Insulator thickness (mm) 0.40
Finish outer diameter (mm) 1.5

Standard JCS 3368
Environmental correspondence RoHS
The rating voltage 300v
Heat-resistant 60 degrees Celsius
Incombustibility A 60 degrees slant is incombustible
Insulating material PVC
