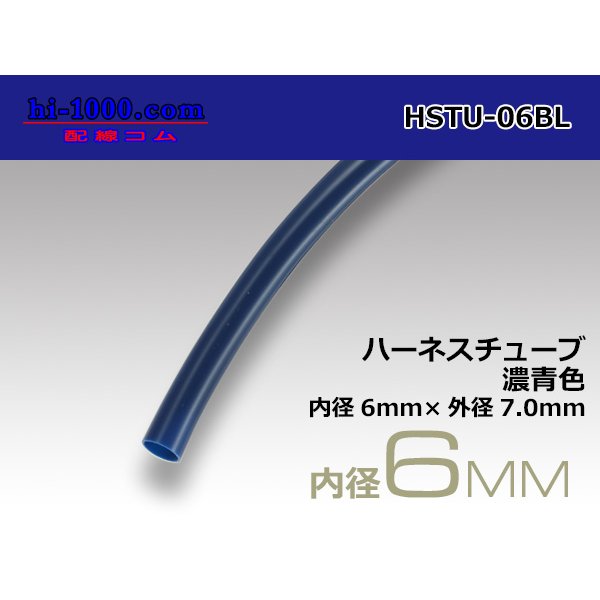

Harness tube Inner diameter 6 Φ [color Dark Blue] 1m(6.0x7.0)/HSTU-06BL [HSTU-06BL]
![Photo1: Harness tube Inner diameter 6 Φ [color Dark Blue] 1m(6.0x7.0)/HSTU-06BL](https://www.hi-1000ec.com/data/hi-1000/product/product/104330598_o1.jpg)
Harness tube Inner diameter 6 Φ [color Dark Blue] 1m(6.0x7.0)/HSTU-06BL
[HSTU-06BL]
Price: US$1.25
Weight: 15g
Stock:101
■ price is the price per 1m. We will deliver it to your purchase quantity in the "connected state".
■ ideal have excellent flexibility to harness and the like made of a tube that vinyl chloride resin (PVC) was prepared by extrusion molding in the main raw material.
■ ideal have excellent flexibility to harness and the like made of a tube that vinyl chloride resin (PVC) was prepared by extrusion molding in the main raw material.
| Item | characteristics | |
| cold resistance | appearance | does not cause cracks on the surface |
| test conditions | - 20 ℃ | |
| tensile strength | 14.7MPa more | |
| beauty Shin | 150% or more | |
| aging test | tensile strength retention of | 90% or more |
| 70% or more | 70% or more | |
| 100 ℃ × 120hr | 100 ℃ × 120hr | |
| oil test | tensile strength retention of | 70% |
| residual rate of growth | 70% or more | |
| test conditions | 2 No. insulating oil 70 ℃ × 4hr | |
| flame retardant properties | within 15 seconds self-extinguishing | |
| heat resistance | degenerative | reduction rate within 10% of the thickness of |
| contractility | 10% within the length reduction rate of | |
| test conditions | 120 ℃ × 1hr | |
| insulation resistance < td align = "center"> 1,000MΩ ? m or more | ||
| withstand voltage | 1 minute or more to 5,000V
Harness tube Inner diameter 6 Φ [color Dark Blue] 1m(6.0x7.0)/HSTU-06BL
[HSTU-06BL]
Price: US$1.25 Weight: 15g
Stock:101
| |
