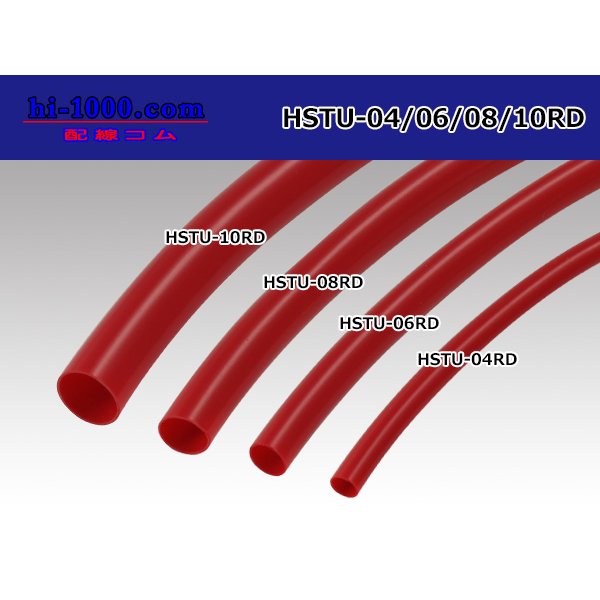

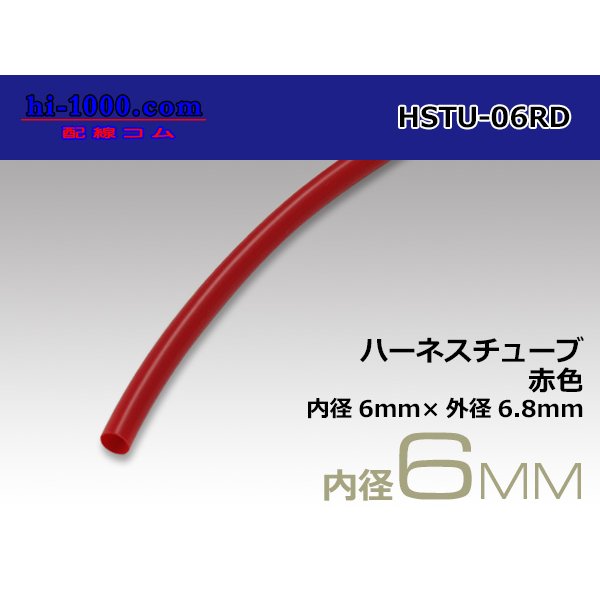

Harness tube [color Red] 6 Φ (6x6.8)(1m)/HSTU-06RD [HSTU-06RD]

Harness tube [color Red] 6 Φ (6x6.8)(1m)/HSTU-06RD [HSTU-06RD]

Price: US$1.25

Weight: 15g

Stock:125
Quantity:
Contact Us Wish List
■ price is the price per 1m. We will deliver it to your purchase quantity in the "connected state".
■ heat temperature 60 ℃, is a tube with enhanced workability.
■ have excellent flexibility is ideal for such as harness production. < td align = "center" colspan = "2"> thermal stability (time) < td> growth residual rate (%)
Item red (glossy) < / tr>
tensile test tensile strength (MPa) 18.8
elongation (%) 350
100% modulus (MPa) 10.1
tensile after the heating test the tensile strength of the survival rate (%) 100
growth residual rate (%) 92
heating deformation rate (%) 15 < / tr>
cold resistance (℃) - 33
3.0
& nbsp; oil resistance tensile strength retention of (%) 102
99
& nbsp; JIS hardness (23 ℃) 80
& nbsp; specific gravity 1.36
heating conditions ??? 100 ℃ / 120 hour test method ??? JIS K 6723 compliant
* above are representative values, not guaranteed values. & Nbsp;
