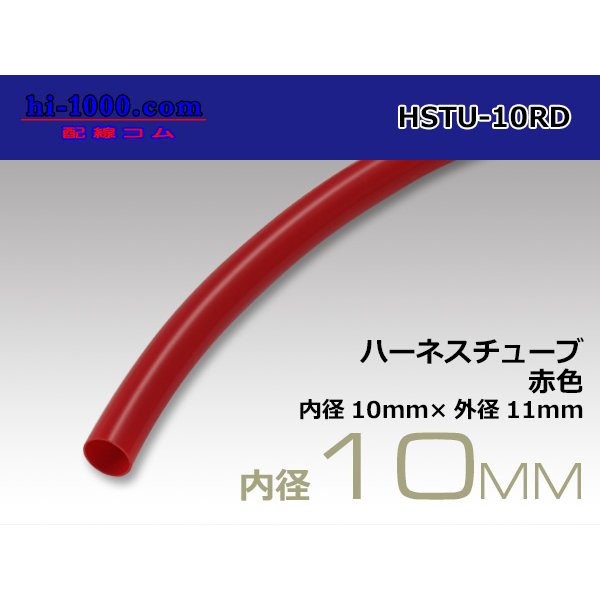

Harness tube [color Red] 10 Φ (10x11)(1m)/HSTU-10RD [HSTU-10RD]
![Photo1: Harness tube [color Red] 10 Φ (10x11)(1m)/HSTU-10RD](https://www.hi-1000ec.com/data/hi-1000/product/product/105840742_o1.jpg)
![Photo2: Harness tube [color Red] 10 Φ (10x11)(1m)/HSTU-10RD](https://www.hi-1000ec.com/data/hi-1000/product/product/105840742_o2.jpg)
Harness tube [color Red] 10 Φ (10x11)(1m)/HSTU-10RD
[HSTU-10RD]
Price: US$2.33
Weight: 15g
Stock:105
■ price is the price per 1m. We will deliver it to your purchase quantity in the "connected state".
■ heat temperature 60 ℃, is a tube with enhanced workability.
■ have excellent flexibility is ideal for such as harness production. < td align = "center" colspan = "2"> thermal stability (time) < td> growth residual rate (%)
■ heat temperature 60 ℃, is a tube with enhanced workability.
■ have excellent flexibility is ideal for such as harness production. < td align = "center" colspan = "2"> thermal stability (time) < td> growth residual rate (%)
| Item | red (glossy) < / tr> | ||
| tensile test | tensile strength (MPa) | 18.8 | |
| elongation (%) | 350 | ||
| 100% modulus (MPa) | 10.1 | ||
| tensile after the heating test | the tensile strength of the survival rate (%) | 100 | |
| growth residual rate (%) | 92 | ||
| heating deformation rate (%) | 15 < / tr> | ||
| cold resistance (℃) | - 33 | ||
| 3.0 | |||
| & nbsp; oil resistance | tensile strength retention of (%) | 102 | |
| 99 | |||
| & nbsp; JIS hardness (23 ℃) | 80 | ||
| & nbsp; specific gravity | 1.36
| ||
