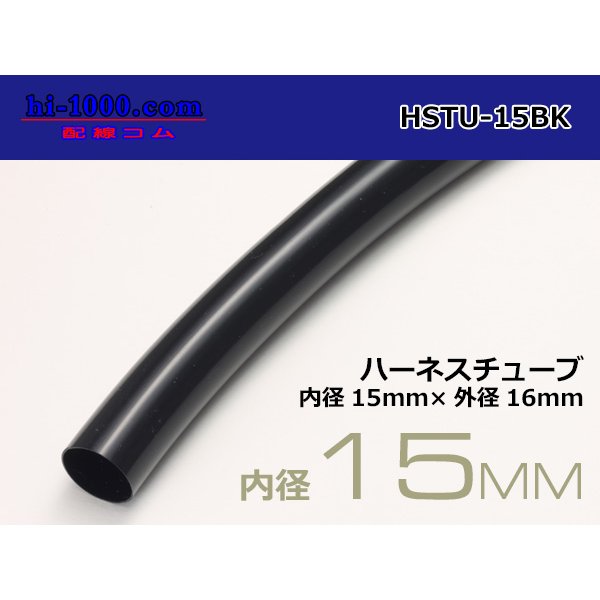

Harness tube [color Black] 15 Φ (15x16) (1m)/HSTU-15BK [HSTU-15BK]
![Photo1: Harness tube [color Black] 15 Φ (15x16) (1m)/HSTU-15BK](https://www.hi-1000ec.com/data/hi-1000/product/product/103540969_o1.jpg)
![Photo2: Harness tube [color Black] 15 Φ (15x16) (1m)/HSTU-15BK](https://www.hi-1000ec.com/data/hi-1000/product/product/103540969_o2.jpg)
![Photo3: Harness tube [color Black] 15 Φ (15x16) (1m)/HSTU-15BK](https://www.hi-1000ec.com/data/hi-1000/product/product/103540969_o3.jpg)
Harness tube [color Black] 15 Φ (15x16) (1m)/HSTU-15BK
[HSTU-15BK]
Price: US$4.03
Weight: 15g
Stock:164
■ price is the price per 1m. We will deliver it to your purchase quantity in the "connected state".
■ heat temperature is dropped the glossy 60 ℃ black (semi-gloss) to improve the street of the wire, it is a tube with enhanced workability.
■ have excellent flexibility is ideal for such as harness production.
■ heat temperature is dropped the glossy 60 ℃ black (semi-gloss) to improve the street of the wire, it is a tube with enhanced workability.
■ have excellent flexibility is ideal for such as harness production.
| Item | black (semi-gloss) | |
| tensile test | tensile strength (MPa) | 19.3 |
| elongation (%) | 350 | |
| 100% modulus (MPa) < / td> | 10.4 | |
| tensile after the heating test | tensile strength residual rate (%) | 93 |
| growth residual rate (%) | 83 | |
| heating deformation rate (%) | 12 | |
| cold resistance (℃) | - 35 | |
| thermal stability (time) | 3.0 | |
| & nbsp; oil resistance | tensile strength retention of (%) | 92 |
| growth residual rate (%) | 81 | |
| & nbsp; JIS hardness (23 ℃) | 80 | |
& nbsp; specific gravity < td align = "center"> 1.37
| ||
