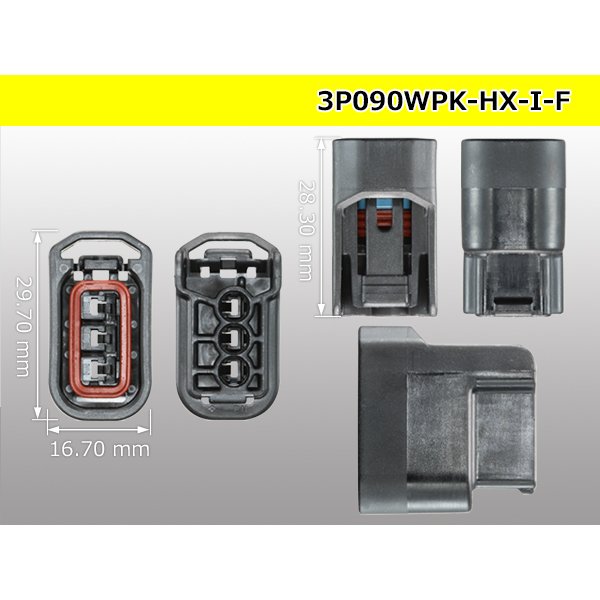

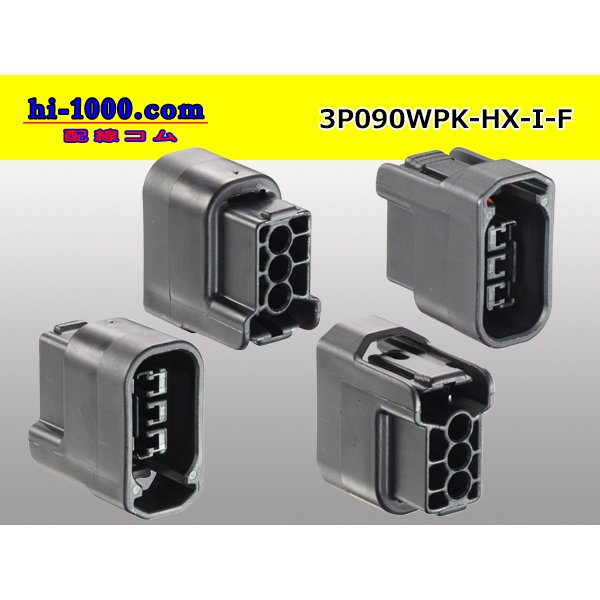

●[sumitomo] 090 type HX series 3 pole F connector (no terminal nothing) /3P090WP-HX-I-F-tr [3P090WP-HX-I-F-tr]

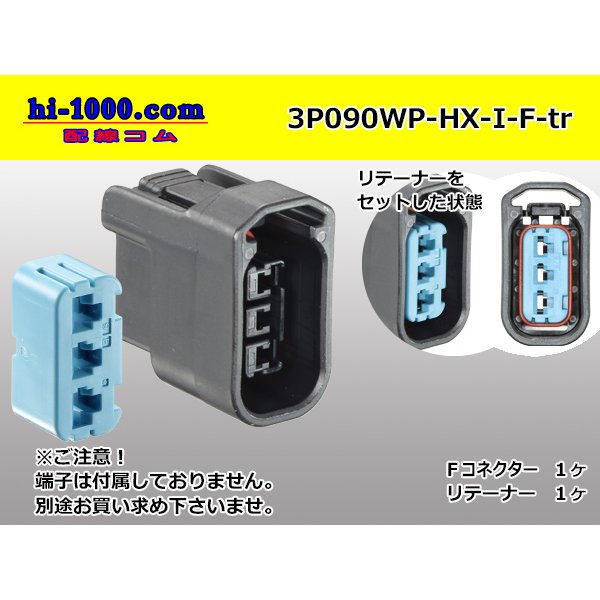

This product is F side connector and Retainer.

Please buy F terminal, the wire seal separately.



Corresponding terminals separately prepare it as follows.

Please find necessary amount

In addition, it is available as a spare for the repair.




■F090WP-HX-MS ■

With F terminal (medium size)

Green wire seal for 2.1-2.9mm (small size)

■F090WP-HX-DL-SL-wr ■

It is F terminal (medium size) simple substance

It adapts to an electric wire of the 0.85-1.25 square millimeter

■WS7165-0194HX-GRE ■

Wire seal

Green for electric wire finish 2.1-2.9mm outside diameter

■DP7165-0193HX-GRE ■

Dummy stopper

Please use it on the part without the terminal



There is not the setting of the fitting counterpart.

I am not published in the catalogue of the maker.

In Sumitomo Wiring Systems, it is thought that it is not manufactured from a coupler simple substance.

(the M side is not a coupler simple substance, and it is thought that it is at one with supplementary containers or an apparatus and is molded)
