■[SWS] AVSSC0.3f (1m)　 [color White & Black stripe] /AVSSC03f-WHBK [AVSSC03f-WHBK]

A price is a price around 1m.

I send it in "a connected state" to the purchase amount.

But the upper limit becomes number of the stock or 100m as 1 reel becomes 100m.


Use I use it in the low-pressure conductive trace of automotive (four-wheeled mainly)

Characteristic AVSSC is Sumitomo name of AVSS(f).

Heat-resistant class 80 degrees Celsius



Maker Sumitomo Wiring Systems

Series Escalope low pressure electric wire (escalope electric wire type 2) for the AVSSC(f-type) car

Standard size 0.3(f) flexible constitution



Number of the wires/wire diameter (this /mm) 19/0.16

Conductor calculation cross section (mm2) 0.3821

Conductor outer diameter (mm) 0.8

nonconductor(mm) 0.3

Finish outer diameter(mm) 1.4-1.5

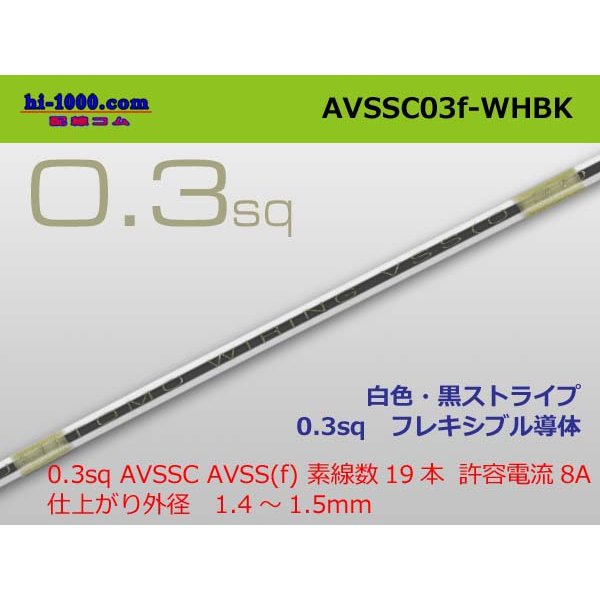

※The current tolerance in the image is notation in case of ambient temperature 40 degrees.
