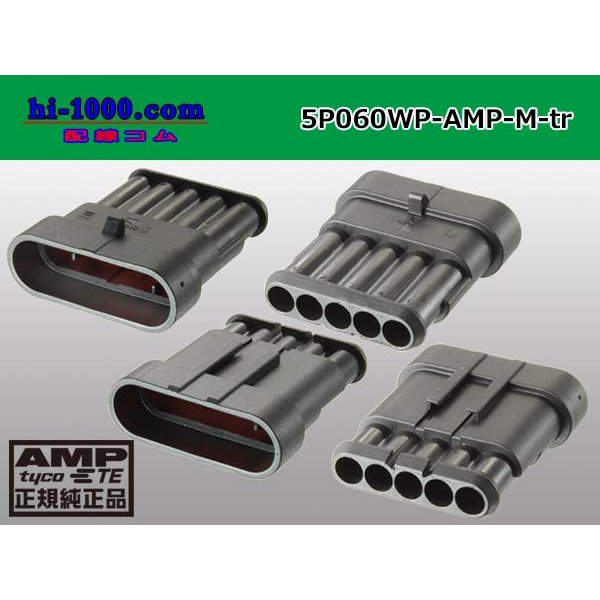

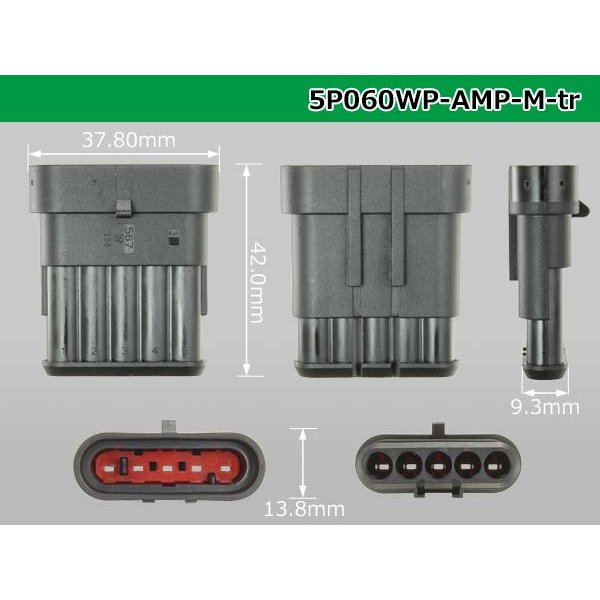

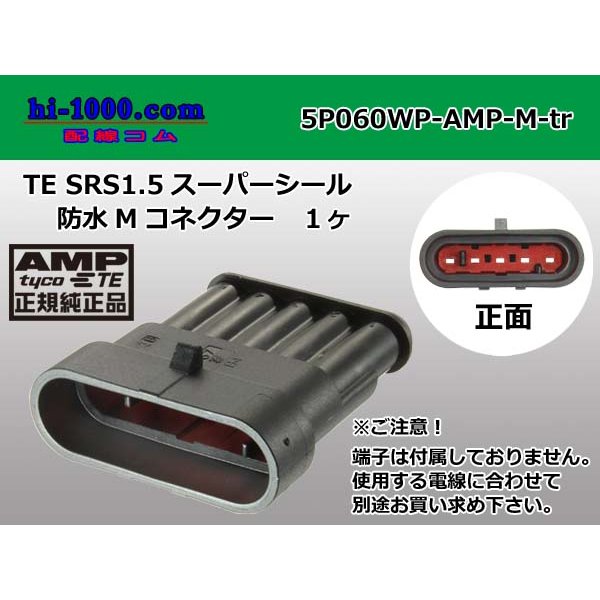

●[TE]060 type SRS1.5 super seal waterproofing 5 pole M connector(no terminals) /5P060WP-AMP-M-tr [5P060WP-AMP-M-tr]

This product is M side connector.
Please buy the M terminal, the wire seal and dummy plug are separately.
In addition, the F side connector is not included, too.
please buy it separately.


Brand： TE Con​​nectivity(AMP)
Series：AMP SUPERSEAL 1.5 waterproofing series
Standard size：060
Hue：Black
Gender：Male
Number of Positions：Waterproofing 5 Position
Terminal / Wire seal：selling separately


Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.



◆F side connector（No terminals)
"5P060WP-AMP-F-tr"

■M terminal（S size） + wire seal（S size／light green）
"M060WP-AMP-03505"
for AVSS0.3mm2

■M terminal（S size） + wire seal（M size／yellow）
"M060WP-AMP-05"
for AVS/AVSS0.5mm2

■M terminal（M size） + wire seal（M size／yellow）
"M060WP-AMP-07515"
for AVS0.75/AVSS1.25mm2

■M terminal（L size） + wire seal（L size／red）
"M060WP-AMP-1525"
for AVS/AVSS2.0mm2

■M terminal individually（S size）
"M060WP-AMP-03505-wr"
for 0.35〜0.5mm2

■M terminal individually（M size）
"M060WP-AMP-07515-wr"
for 0.75〜1.5mm2

■M terminal individually（L size）
"M060WP-AMP-1525-wr"
for 1.5〜2.5mm2

■Wire seal（S size／light green）
"WS-934-4-GRE"
for 1.2-1.6mm

■Wire seal（M size／yellow）
"WS-934-2-YE"
for 1.7-2.4mm

■Wire seal（L size／red）
"WS-934-3-RD"
for 1.59-3.3mm

■Dummy plug
"DP-SRS15-AMP"
Please use without terminals.
