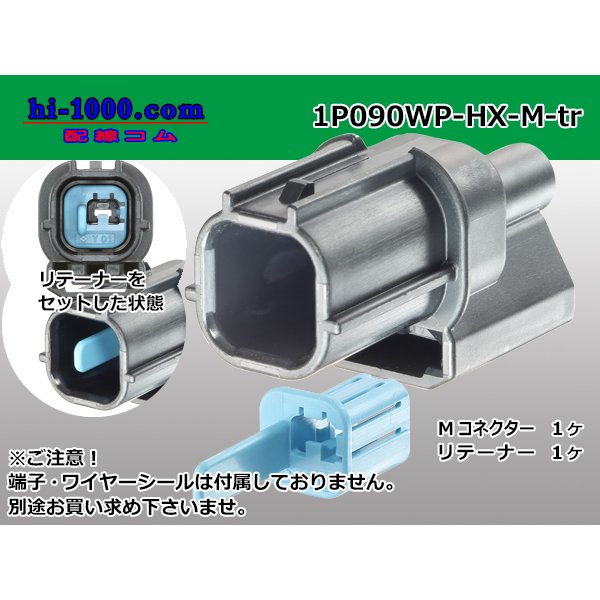

●[sumitomo] 090 type HX series 1 pole M connector (no terminal) /1P090WP-HX-M-tr [1P090WP-HX-M-tr]

As for this product, M terminal, a wire seal are attached to M side connector and Retainer.

I prepare as a spare for the repair separately.

■M090WP-HX-MS
It supports an electric wire of terminal (medium size) + wire seal (for HX) AVS0.85-1.25/AVSS1.25mm2

■M090WP-HX-DL-SL-wr
M terminal (medium size) simple substance
(0.85-1.25mm2)
■WS7165-0194HX-GRE
A wire seal (for HX) is green
Electric wire finish 1.7-2.4mm outside diameter business
■DP7165-0193HX-GRE
Dummy stopper
Please use it on the part without the terminal
