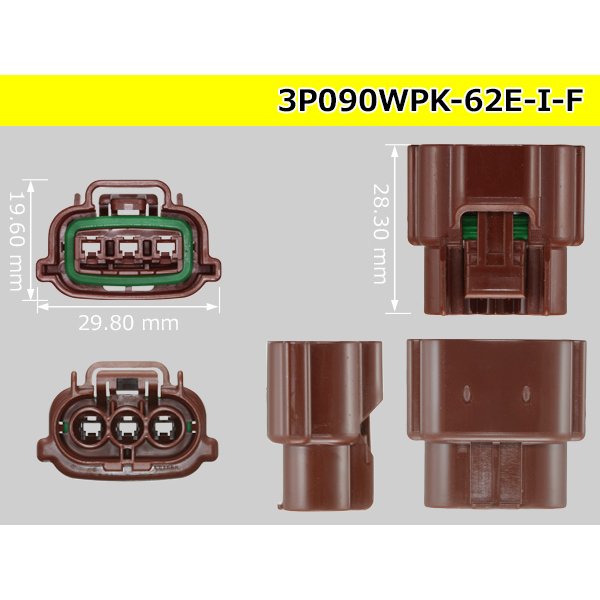

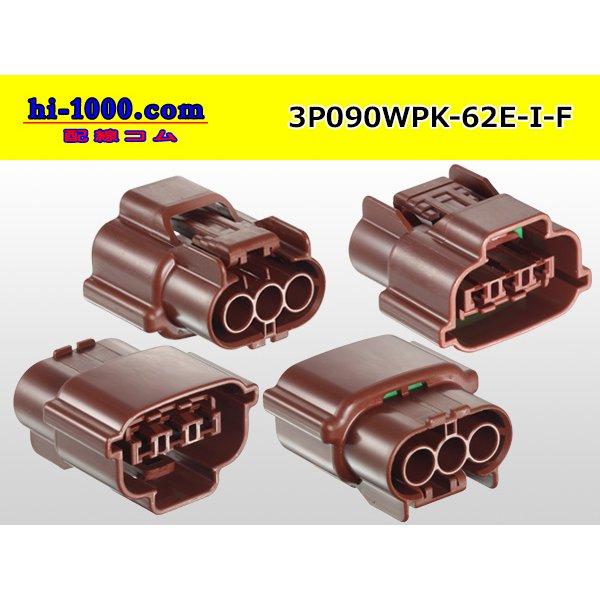

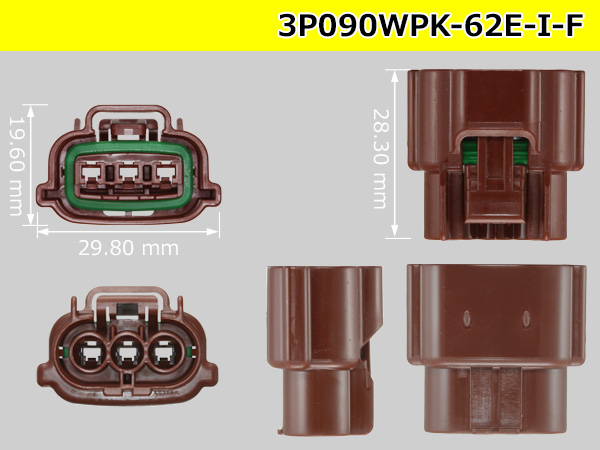

●[sumitomo] 090 typE 62 waterproofing series E type 3 pole F connector (brown)(no terminal)/3P090WP-62E-I-F-tr [3P090WP-62E-I-F-tr]

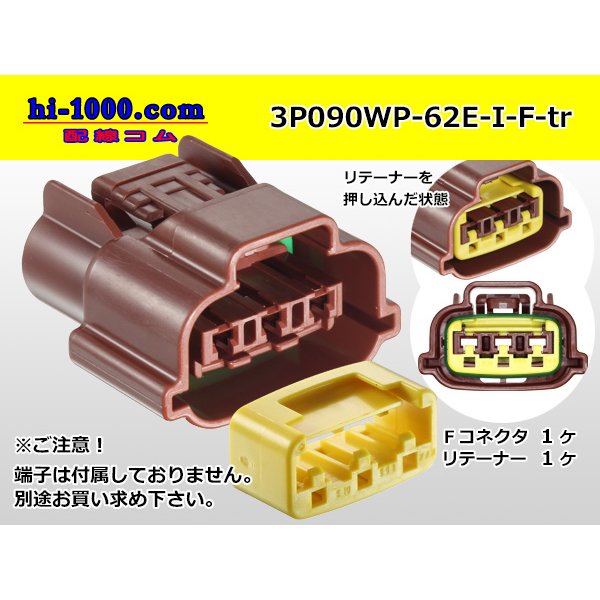

This product is F side connector and Retainer. Please buy F terminal, the wire seal separately.
＊As there are other very similar shapes, please be careful in the shapes of the positions of the convex enough.

In addition, I cannot replace the terminal from the back even if the shape of the connector is the same as the terminal which I can use is different from "RS" in "62E".
As this is because the series of the connector is different, please be careful enough.

The corresponding terminal separately prepares it as follows.
Please find necessary amount.
You can use it as a spare for the repair.

■F terminal + wire seal
"F090WP-62E-S-P6YE"
One F terminal and one wire seal
■F terminal simple substance
"F090WP-62E-S-wr"
■Wire seal 62 waterproofing series
"WS7157-3881-62E-P6YE"
(for exclusive use of the tripolar connector)

The setting of the fitting counterpart is not published in the catalogue of the maker which there is not.
In Sumitomo Wiring Systems, it is thought that it is not manufactured from a coupler simple substance.
(the M side is not a coupler simple substance, and it is thought that it is at one with supplementary containeRS or an apparatus and is molded)
