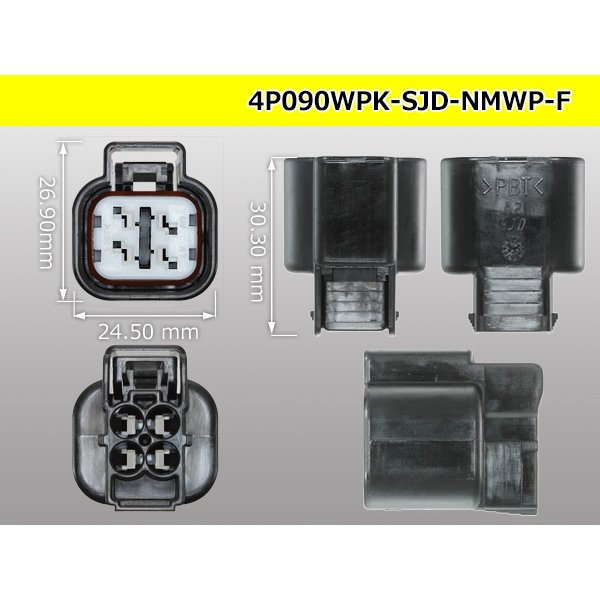

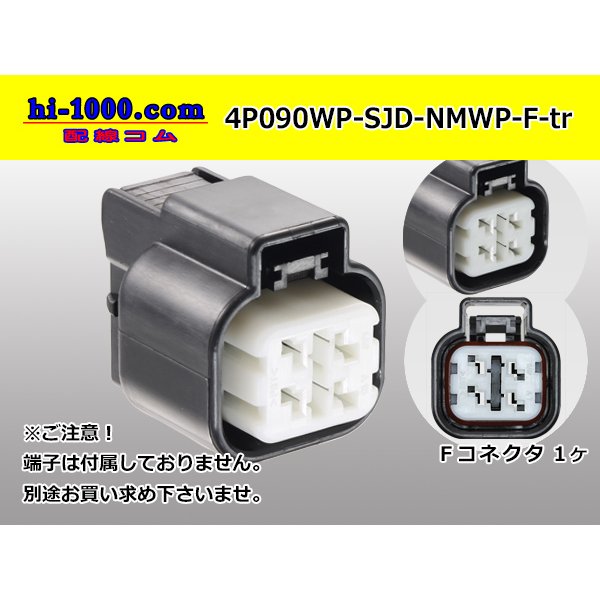

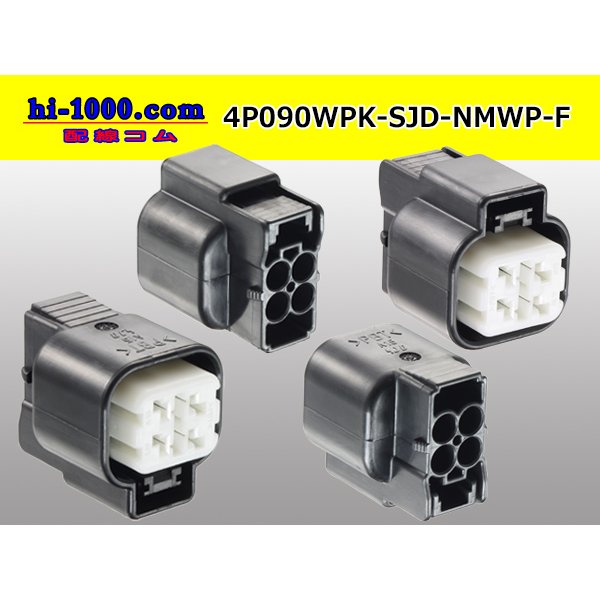

●[furukawa] (former Mitsubishi) NMWP series 4 pole waterproofing F connector（no terminals）/4P090WP-SJD-NMWP-F-tr [4P090WP-SJD-NMWP-F-tr]

This product is F side connector and Retainer.
Please buy a terminal, the wire seal separately.
In addition, please be careful as the M side of the counterpart is not included.

Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.

In the case of use, please choose this by an electric wire of AVS0.5mm2.
■F terminal (small size) + wire seal (brown)
"F090WP-SJD-NMWP-S"

In the case of use, please choose this by an electric wire of AVS0.85mm2.
■F terminal + wire seal (brown)
"F090WP-SJD-NMWP-M"

In the case of use, please choose this by an electric wire of AVS1.25-2.0mm2.
■F terminal + wire seal (purple)
"F090WP-SJD-NMWP"

■F terminal (small size) simple substance 0.3-0.5mm2
"F090WP-SJD-NMWP-S-wr"
■F terminal simple substance 0.85-2.0mm2
"F090WP-SJD-NMWP-wr"
■A wire seal is brown
Application electric wire AV0.5mm2 AVS0.5 - 0.85mm2
CAVS/AVSS1.25mm2
■A wire seal is purple
Application electric wire AV/AVS1.25-2.0mm2
■Dummy stopper
"DP-NMWP-PZ001-LGRY"
■After inserting a terminal in a connector, you come in, and please lock attached Retainer.

A fitting counterpart is this
◆"Only a connector"
4P090WP-SJD-NMWP-M-tr
