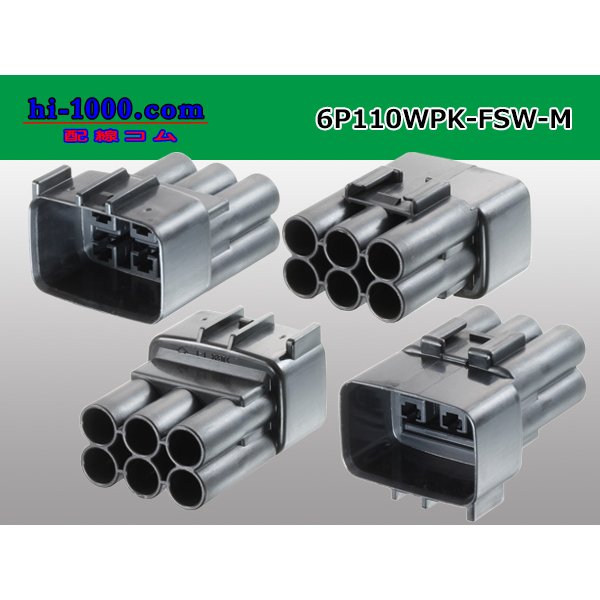

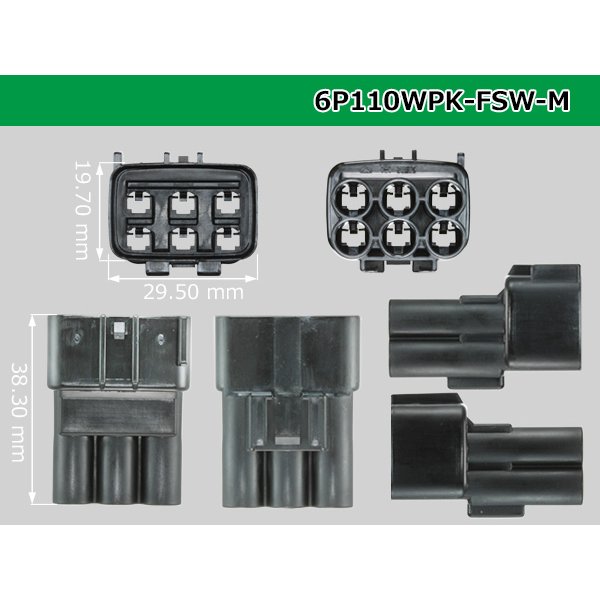

●[furukawa] 110 type waterproofing FSW series 6 pole M connector (no terminals) /6P110WP-FSW-M-tr [6P110WP-FSW-M-tr]

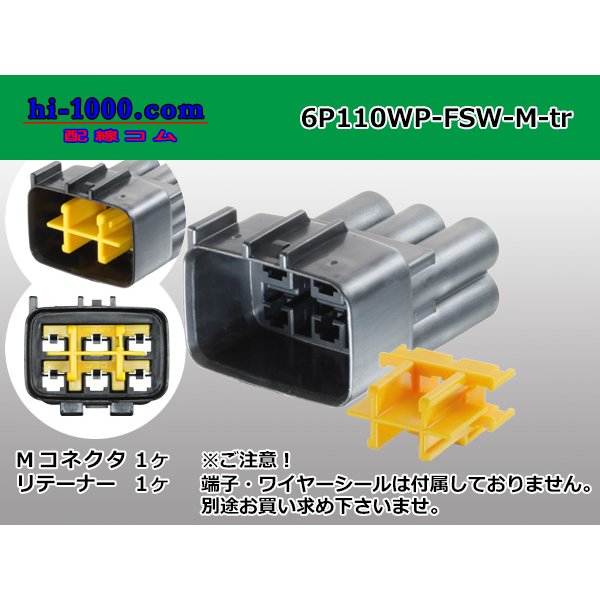

As for this product,Retainer is attached to the M side connector.
A terminal, the wire seal, please find for necessary number separately.
In addition, please be careful as the fitting counterpart is not attached.

The corresponding terminal separately prepares it as follows.
Please find necessary amount.
It is available as a spare for the repair.

In the case of use, it becomes this by an electric wire of AVSSB0.5/AVS0.5-0.75.
■M terminal + wire seal
"M110WP-FSW"
Electric wire adaptation size AVSS0.85-AV1.25mm2

■M terminal simple substance
"M110WP-FSW-wr"
Electric wire adaptation size AVSS0.85-AV1.25mm2 (terminal simple substance)
■Wire seal
"WS-FSW-125"
(application electric wire 1.8-3.1mm outside diameter)

A fitting counterpart is this
◆"6P110WP-FSW-F-tr"
(terminal, wire seals) after inserting a terminal in a connector, attach attached Retainer, and please lock it.
