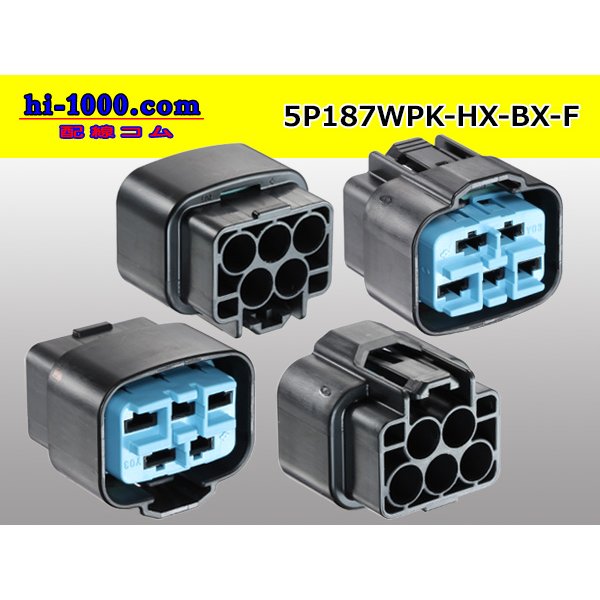

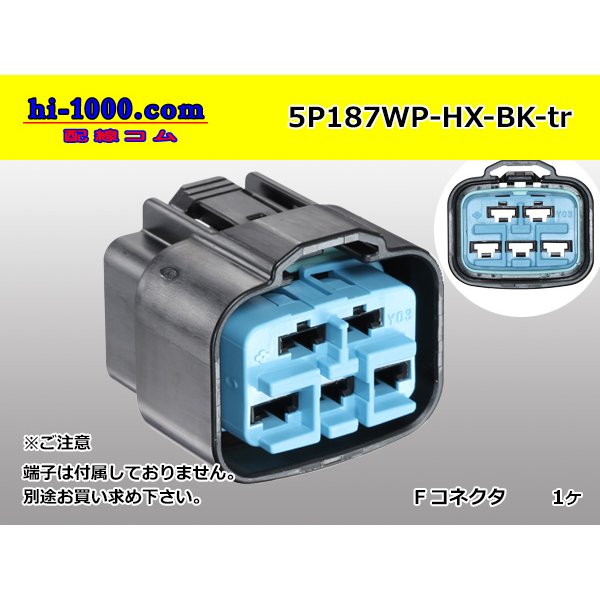

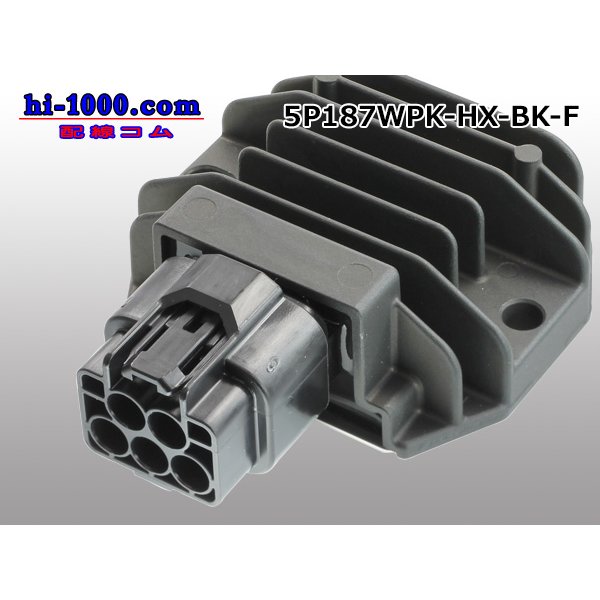

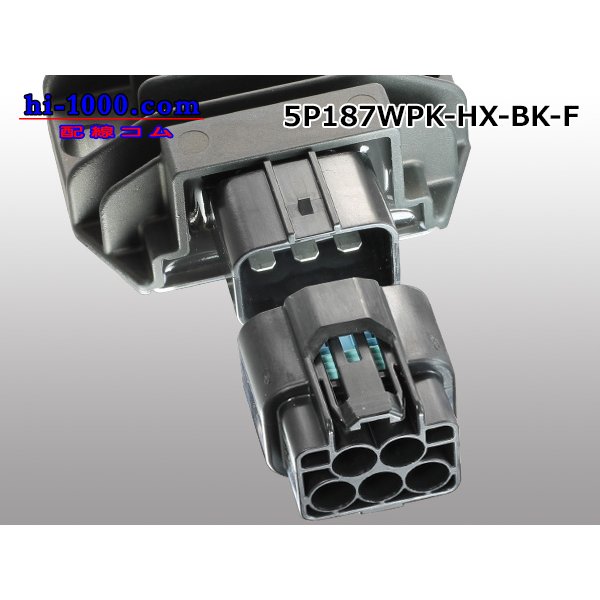

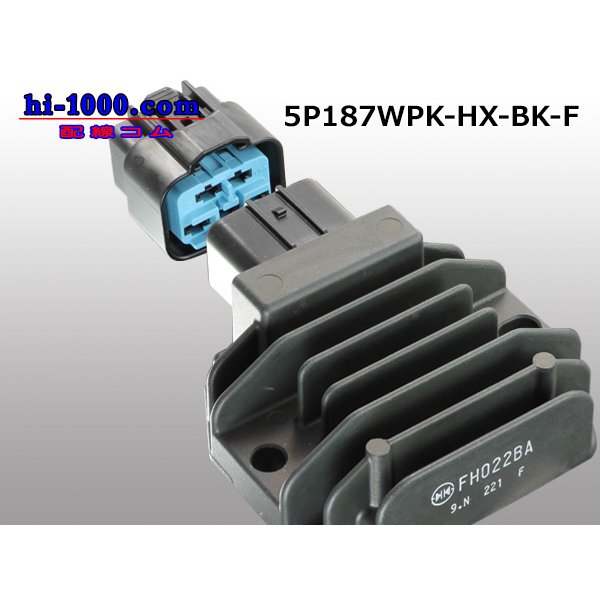

●[sumitomo] 187 type 5 pole HX waterproofing F side connector [black] /5P187WP-HX-BK-F-tr [5P187WP-HX-BK-F-tr]

This product is F side connector and Retainer. Match a terminal, the wire seal with electric wire size to use.
As you have a choice, please buy it separately.
In addition, there is not the maker setting of the fitting counterpart.

■An electric wire of AVS0.5-1.25mm2 in the case of use
F terminal (medium size) + wire seal (medium size)
Set of one F terminal and one wire seal
■An electric wire of AVS2.0-3.0mm2 in the case of use
F terminal (large size) + wire seal (large size)
Set of one F terminal and one wire seal
■An electric wire of AVS3.0mm2 in the case of use
F terminal (large size) + wire seal (LL size)
Set of one F terminal and one wire seal

Simple substance of terminal/wire seal
■F terminal simple substance (medium size)
"F187WP-TS-M-wr"
■F terminal simple substance (large size)
"F187WP-TS-L-wr"
■wire seal simple substance (mediuM size)
"WS7165-0347TS-DL-DGRE"
■Wire seal simple substance (large size)
"WS7165-0348TS-DL-DGRY"
■Wire seal simple substance (LL size)
"WS7165-0356TS-DL-NV"

There is not handling oF the fitting counterpart
