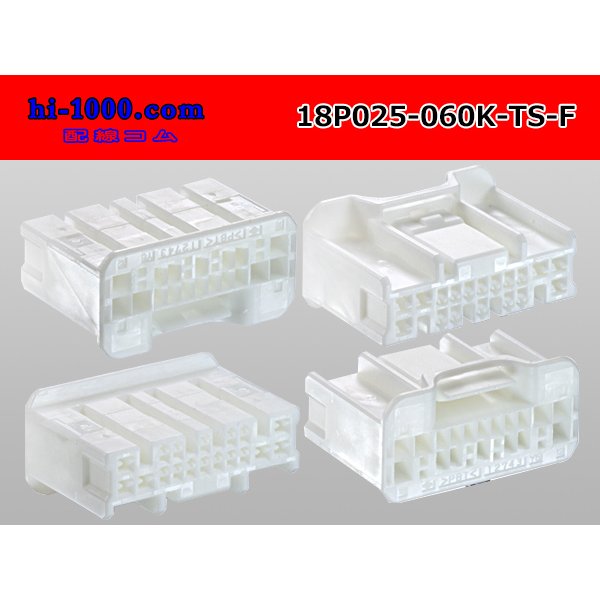

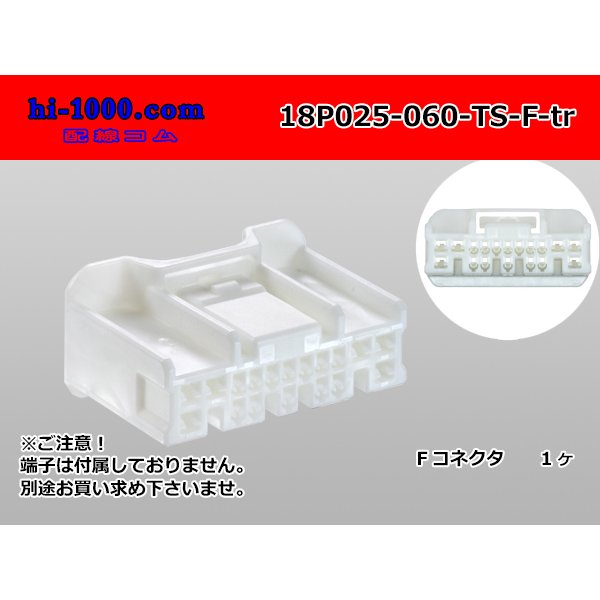

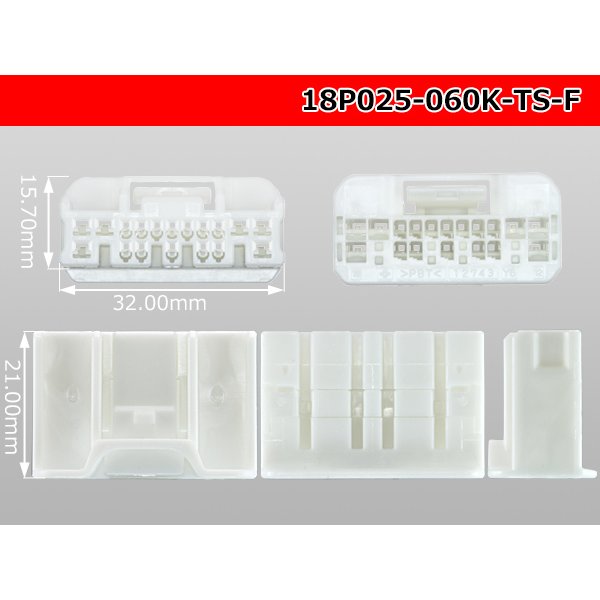

●[sumitomo] 025 type +060 type TS series hybrid 18 pole F connector (no terminals) /18P025-060-TS-F-tr [18P025-060-TS-F-tr]

Only as for Sumitomo Wiring Systems 025 type +060 type TS series hybrid 18 pole F connector, it is (terminal nothing) /18P025-060-TS-F-tr.
As for this product, the terminal, please find for necessary number only in a connector separately.

The corresponding terminal prepares separately as follows.
In addition, you can use it as a spare for the repair.

025 type (12 places)
■025 F terminals
"M025"
Electric wire adaptation size 0.3-0.5mm2

060 type (six places)
■060 F terminals
"F060-TS"
Electric wire adaptation size 0.75-1.25mm2

025 models (12 places) that the terminal with the electric wire is the terminal which crimps it, and has been processed

■F terminal with 025 electric wires
"F025-CAVS03"

A fitting counterpart is this
■"18P025-060-M-tr" (no terminals)

＊Please be careful to the convex position, shape that there are other connectors of the very similar shape, sequence, the number of the terminal.

＊Please be careful to the convex position, shape that there are other connectors of the very similar shape, sequence, the number of the terminal.
