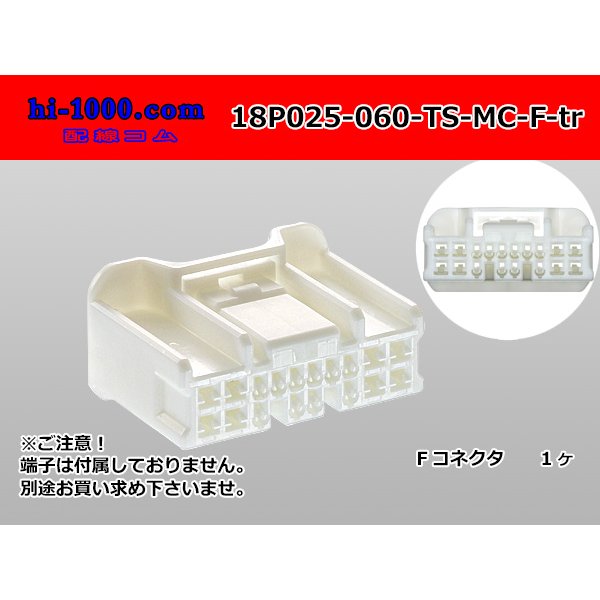

●[sumitomo] 025 type +060 type TS series hybrid 18 pole F connector[type MC] (no terminals) /18P025-060-TS-MC-F-tr [18P025-060-TS-MC-F-tr]

025 model +060 type TS series hybrid 18 pole F connector [MC type] (no terminals) /18P025-060-TS-MC-F-tr made by Sumitomo Wiring Systems
As for this product, the terminal, please find for necessary number only in a connector separately.

The corresponding terminal prepares separately as follows.
In addition, you can use it as a spare for the repair.

025 type (ten places)
■025 F terminals
"M025"
Electric wire adaptation size 0.3-0.5mm2

060 type (eight places)
■060 F terminals
"F060-TS"
Electric wire adaptation size 0.75-1.25mm2

025 models (ten places) that the terminal with the electric wire is the terminal which crimps it, and has been processed
■F terminal with 025 electric wires
"F025-CAVS03"

A fitting counterpart is this
■"18P025-060-TS-MC-M-tr" (no terminals)

＊Please be careful to the convex position, shape that there are other connectors of the very similar shape, sequence, the number of the terminal.
