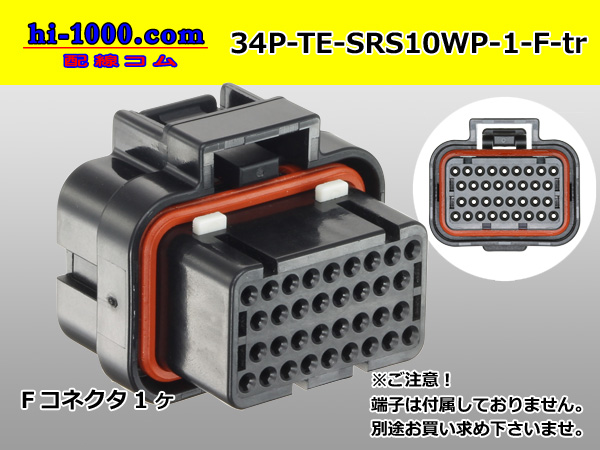

●[TE] SRS series 34 pole waterproofing F connector (no terminals) /34P-TE-SRS10WP-1-F-tr [34P-TE-SRS10WP-1-F-tr]

As for this product, the terminal, please buy the necessary number only in the F side connector separately.
＊Please note that the counterpart connector to fit is not attached.

The corresponding terminal separately prepares it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.

■F terminal "F-TE-SRS10WP-S"
Application electric wire size 0.5mm2
Electric wire finish 1.6-2.2mm outside diameter

■Dummy stopper "DP-TE-SRS10-7284"
It is necessary for the point that does not use the terminal

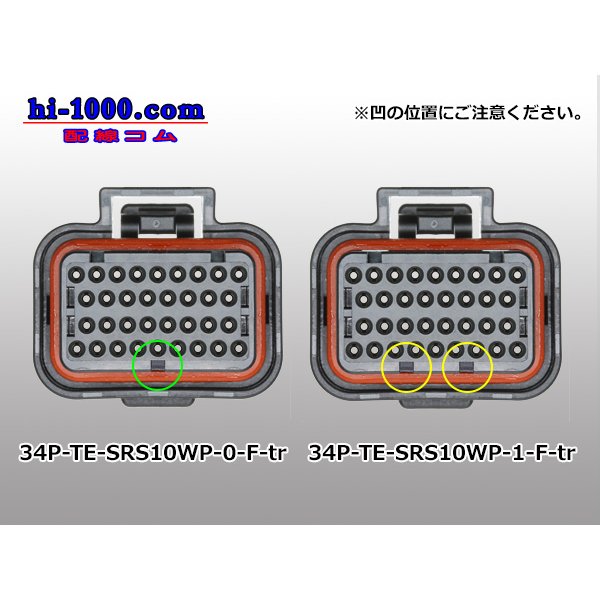

＊There are the number of dents, a position difference with the same shape.
Please note that I am not stuck in the counterpart when mistaken.

＊When you pull a terminal, please be careful
It is a verge pulling a terminal, but please pull up every electric wire slowly after returning "a final lock plate" of the white by all means.
