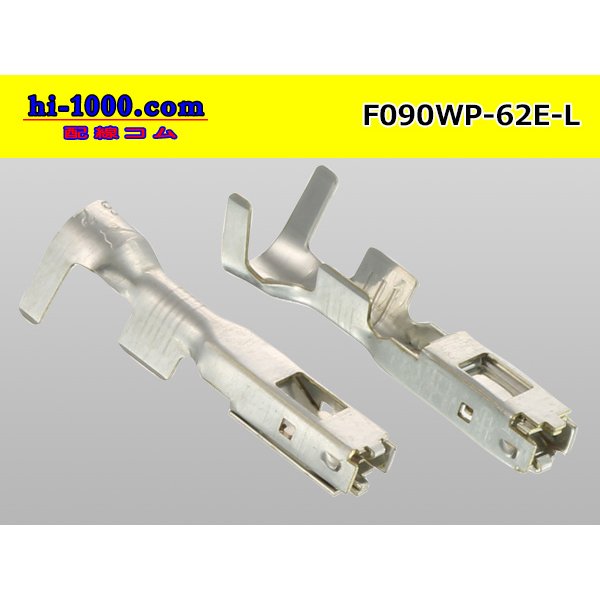

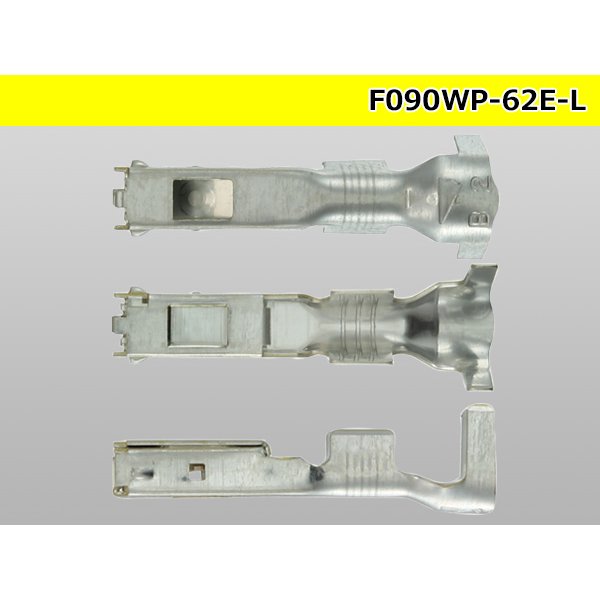

■[Yazaki] 090 type 62 waterproofing series E type F terminal (large size) /F090WP-62E-L-wr [F090WP-62E-L-wr]

As for this product, a female terminal (large size) simple substance is one.
＊The product contents that the wire seal is not attached

Maker Yazaki Corporation
Series 62 waterproofing series E types
Standard size 090
Waterproofing/non-waterproofing Waterproofing
M/F F
Correspondence electric wire size (mm2) of the terminal AVS1.25-2.0 (large size)
Wire seal Separate sale

The corresponding wire seal is this.
In addition, it is available as a spare
■Wire seal "WS7157-3883-62E-PI" pinkness (AVS 1.25 AVSS2.0)
It is tripolar and does not cope.
It becomes that it supports an electric wire of AVS1.25-2.0mm2 (as for 2.0 AVSS) by the combination of this wire seals.

The set product of a terminal and the wire seal (separately a sale product)
◆"A terminal and a wire seal"
F090WP-62E-L-P5PI
Of 62E is tripolar, and do not cope.
