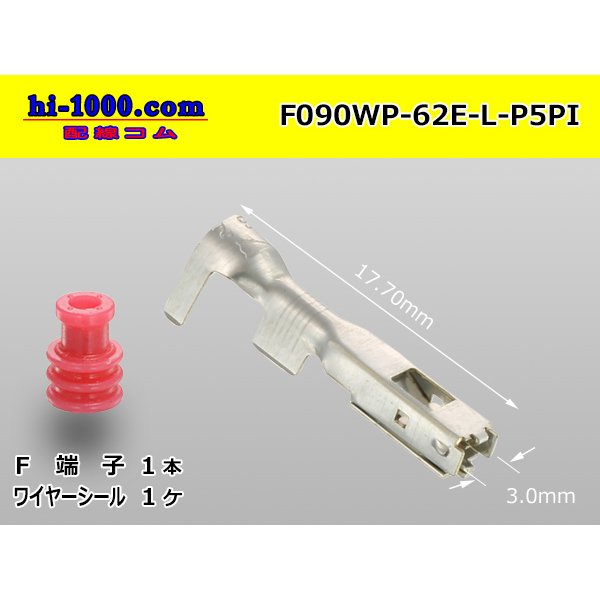

■[Yazaki] 090 type 62 waterproofing series E type F terminal (belonging to WS) /F090WP-62E-L-P5PI [F090WP-62E-L-P5PI]

The product of 090 type 62 waterproofing series E type this becomes the set product of F terminal and the wire seal except the tripolar connector.
Product contents

Maker Yazaki Corporation
Series 62 waterproofing series E types
Standard size 090
Waterproofing/non-waterproofing Waterproofing
M/F F

Correspondence electric wire size of the terminal AVS1.25-2.0mm2
Wire seal The pinkness that it is for 5mm phi (P5)
One Attachment
By the combination mentioned above
In the case of an unnecessary, a wire seal is this in the terminal simple substance which I become that it supports an electric wire of AVS1.25-2.0 (as for 2.0 AVSS)
■Terminal simple substance
"F090WP-62E-L-wr" (large size) (1.25-2.0mm2)

It is available as a spare for the repair
■Wire seal "WS7157-3883-62E-PI"
5mm φ (P5) pinkness
(AVS 1.25 AVSS2.0)

＊It is a price of one terminal and one wire seal.
