[Sumitomo]187TS waterproofing M terminal (medium size) wire seal (medium size) /M187WP-TS-M-M [M187WP-TS-M-M]
[Sumitomo]187TS waterproofing M terminal (medium size) wire seal (medium size) /M187WP-TS-M-M
[M187WP-TS-M-M]
Price: US$0.66
Weight: 1g
Stock:1,840

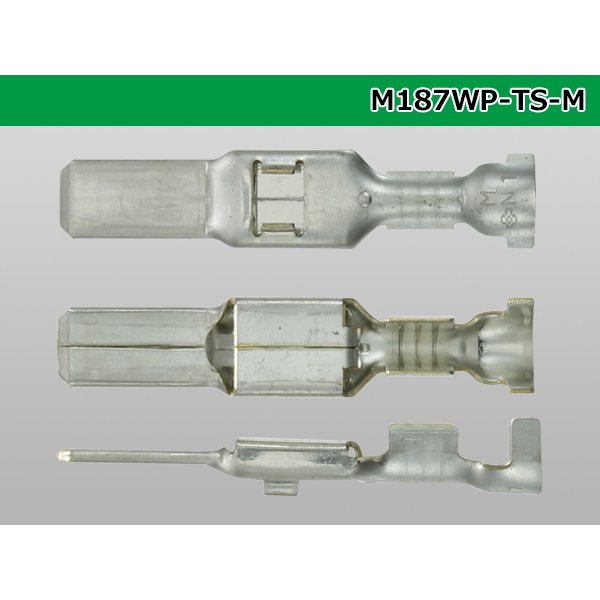

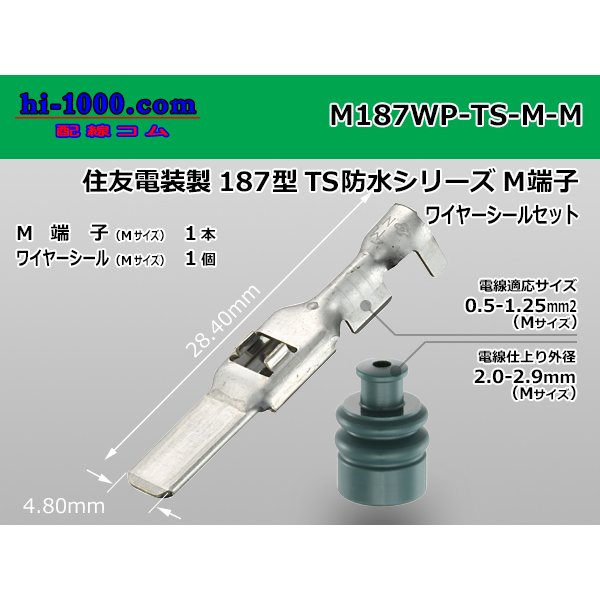

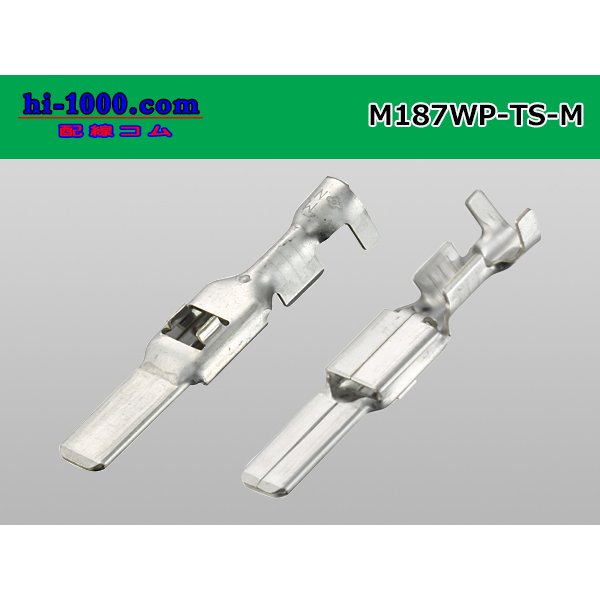

It is one male terminal (medium size) and wire seal (medium size) one.
In the case of use, please choose this product by an electric wire of AV/AVX/AEX/AVS 0.5-1.25mm2 AVSS1.25-2.0mm2.
Product contents
Maker Sumitomo Wiring Systems
Series TS/HX/DL
Standard size 187
Waterproofing/non-waterproofing Waterproofing
M/F M
Correspondence electric wire size of the terminal AVS0.5-1.25mm2 (medium size)
*Electric wire finish outer diameter of WS 2.0-2.9mm (medium size) attachment
In the case of an unnecessary, a wire seal is this in a terminal simple substance
◆"Only a terminal" M187WP-TS-M-wr
Adaptation electric wire size AVS075-1.25mm2 (medium size)
Simple substance of the corresponding wire seal
■Medium size wire seal "WS7165-0347TS-DL-DGRE"
●Application electric wire size 0.5-1.25mm2 (AV/AVX/AEX/AVS)
1.25-2.0mm2 (AVSS) electric wire finish 2.0-2.9mm outside diameter
*WS= wire seal
In the case of use, please choose this product by an electric wire of AV/AVX/AEX/AVS 0.5-1.25mm2 AVSS1.25-2.0mm2.
Product contents
Maker Sumitomo Wiring Systems
Series TS/HX/DL
Standard size 187
Waterproofing/non-waterproofing Waterproofing
M/F M
Correspondence electric wire size of the terminal AVS0.5-1.25mm2 (medium size)
*Electric wire finish outer diameter of WS 2.0-2.9mm (medium size) attachment
In the case of an unnecessary, a wire seal is this in a terminal simple substance
◆"Only a terminal" M187WP-TS-M-wr
Adaptation electric wire size AVS075-1.25mm2 (medium size)
Simple substance of the corresponding wire seal
■Medium size wire seal "WS7165-0347TS-DL-DGRE"
●Application electric wire size 0.5-1.25mm2 (AV/AVX/AEX/AVS)
1.25-2.0mm2 (AVSS) electric wire finish 2.0-2.9mm outside diameter
*WS= wire seal
