[Sumitomo]187TS waterproofing M terminal (large size) wire seal (LL size) /M187WP-TS-L-LL [M187WP-TS-L-LL]
[Sumitomo]187TS waterproofing M terminal (large size) wire seal (LL size) /M187WP-TS-L-LL
[M187WP-TS-L-LL]
Price: US$0.66
Weight: 1g
Stock:1,119

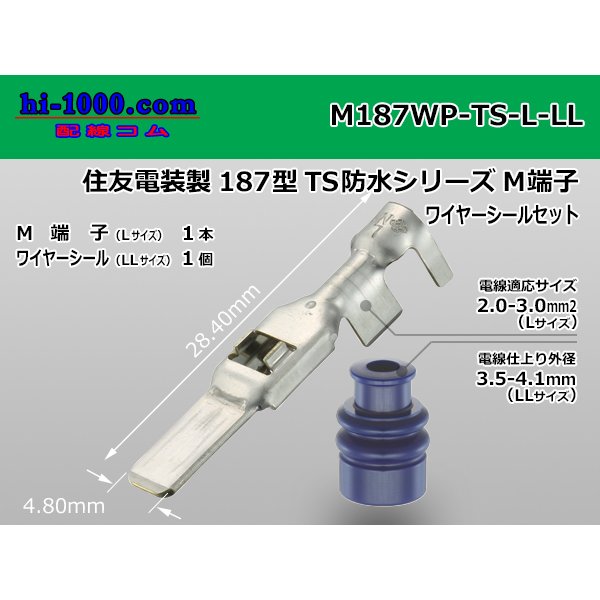

It is one male terminal (large size) and wire seal (LL size) one.
In the case of use, please choose this product by an electric wire of AV/AVX/AEX/AVS 3.0mm2.
Product contents
Maker Sumitomo Wiring Systems
Series TS/HX/DL
Standard size 187
Waterproofing/non-waterproofing Waterproofing
M/F M
Correspondence electric wire size of the terminal AVS2.0-3.0mm2 (large size)
*Electric wire finish outer diameter of WS 3.5-4.1mm (LL size) attachment
In the case of an unnecessary, a wire seal is this in a terminal simple substance
◆"Only a terminal"
M187WP-TS-L-wr
Adaptation electric wire size AVS2.0-3.0mm2 (large size)
Simple substance of the corresponding wire seal
■Large size wire seal "WS7165-0348TS-DL-DGRY"
●Application electric wire size 2.0mm2 (AV/AVX/AEX/AVS)
Electric wire finish 2.9-3.5mm outside diameter
■LL size wire seal "WS7165-0356TS-DL-NV"
●Application electric wire size 3.0mm2 (AV/AVX/AEX/AVS)
Electric wire finish 3.5-4.1mm outside diameter
*WS= wire seal
In the case of use, please choose this product by an electric wire of AV/AVX/AEX/AVS 3.0mm2.
Product contents
Maker Sumitomo Wiring Systems
Series TS/HX/DL
Standard size 187
Waterproofing/non-waterproofing Waterproofing
M/F M
Correspondence electric wire size of the terminal AVS2.0-3.0mm2 (large size)
*Electric wire finish outer diameter of WS 3.5-4.1mm (LL size) attachment
In the case of an unnecessary, a wire seal is this in a terminal simple substance
◆"Only a terminal"
M187WP-TS-L-wr
Adaptation electric wire size AVS2.0-3.0mm2 (large size)
Simple substance of the corresponding wire seal
■Large size wire seal "WS7165-0348TS-DL-DGRY"
●Application electric wire size 2.0mm2 (AV/AVX/AEX/AVS)
Electric wire finish 2.9-3.5mm outside diameter
■LL size wire seal "WS7165-0356TS-DL-NV"
●Application electric wire size 3.0mm2 (AV/AVX/AEX/AVS)
Electric wire finish 3.5-4.1mm outside diameter
*WS= wire seal
