●[sumitomo]090 type HX waterproofing series male terminal HX/ M090WP-HX-MS [M090WP-HX-MS]

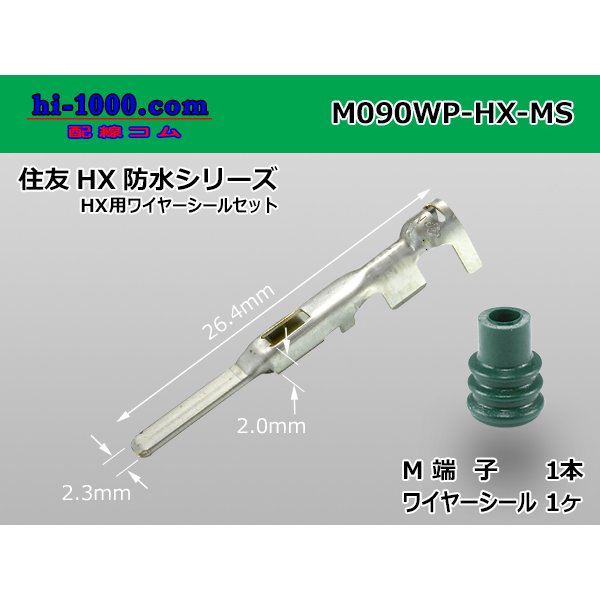

This product is a set product of one terminal (medium size) on the M side (male) and one wire seal (small size).
＊It is that this product supports "090 type HX waterproofing male connector" by the combination of following terminal and wire seal.

In addition, please be careful as the fitting counterpart is not included.
Product contents
Terminal part
Maker Sumitomo Wiring Systems
Series DL/HX/TL/SL
Standard size 090
Waterproofing/non-waterproofing Waterproofing
M/F M
Surface-treat Sn
Material Brass
Adaptation electric wire size 0.75-0.85mm2 (medium size) maker notation
0.5-1.25mm2 actual survey (* note 1)

Wire seal part
Series HX
Electric wire finish outer diameter 1.7-2.4mm
Adaptation electric wire size AV0.5/AVS0.5-0.75mm2
AVSS0.85-1.25mm2
One Attachment
By the combination mentioned above
It supports AVS0.75/AVSS0.85 electric wire

In the case of an unnecessary, a wire seal is this in a terminal simple substance
■Terminal simple substance
"M090WP-HX-DL-SL-wr"

It is available as a spare for the repair
■Wire seal
"WS7165-0194HX-GRE"

＊The pressure bonding processing of note 1 = fact is possible. Thus, AVSSB0.5/AVS0.5mm2 is possible, too,
The one where a number is minded, please follow maker notation.
